TPS M-8X1.25-A HE

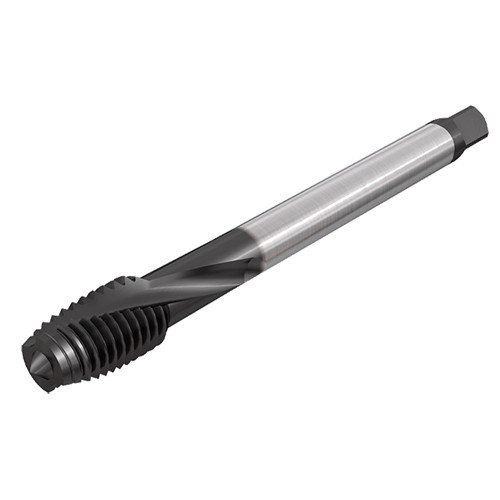

Spiral Flute Tap; M8 x1.25 mm × 3.543″ OAL ; 2 FL ; HSS ; Uncoated ; THFT |

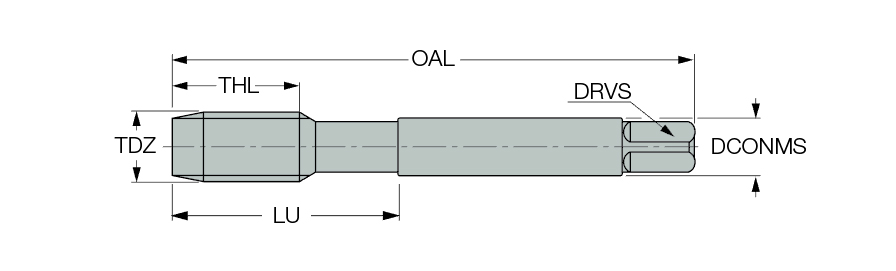

| Thread Diameter Size (TDZ) | M8 | Cutting Edge Material | HSS |
| Thread Pitch (TP) | 1.25 mm | Coating | Uncoated |
| Thread Standard | THFT | | Measurement Type | Inch |
| Overall Length (OAL) | 3.543″ | Grade | HE |
| Thread Cutting Part Length (THL) | 0.512″ | Thread Form Type (THFT) | M60 |
| Usable Length (LU) | 1.38″ | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Body Material | HSS |
| Flute Count (NOF) | 2 | Drive Size (DRVS) | 0.244″ |
| Flute Helix Angle (FHA) | 45 Degrees | Thread Size | M8 × 1.25 |
Product Features
| Family Description | HSS-E 5% Co right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on aluminum and aluminum alloys. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.068
