SCD 115-040-120 AP3N IC908

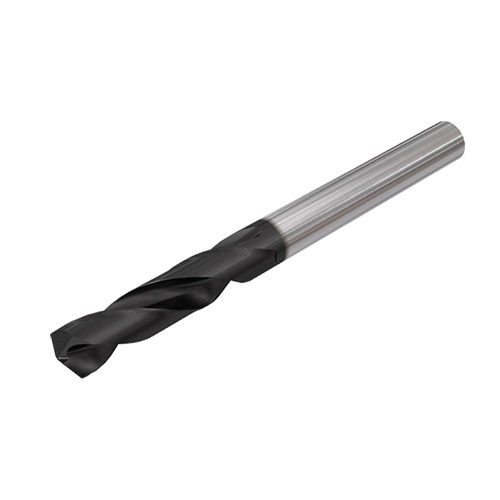

SC Drill; 11.5 mm Dia. × 12 mm Shank Dia. × 101 mm OAL × 55 mm LCF ; TiAlN

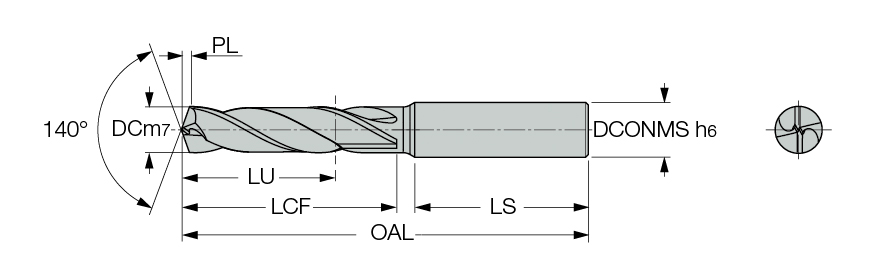

| Drill Bit Size / Cutting Diameter (DC) | 11.5 mm | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.5 mm | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 40 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 55 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Overall Length (OAL) | 101 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Length (PL) | 1.8 mm | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 45 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | DIN 6537 solid carbide drills without coolant holes, drilling depth 3xD. | Country of Origin | S.Korea |
Shipping Info
Package Weight
127
