SCD0625-5047-0630 ACP8FL IC608

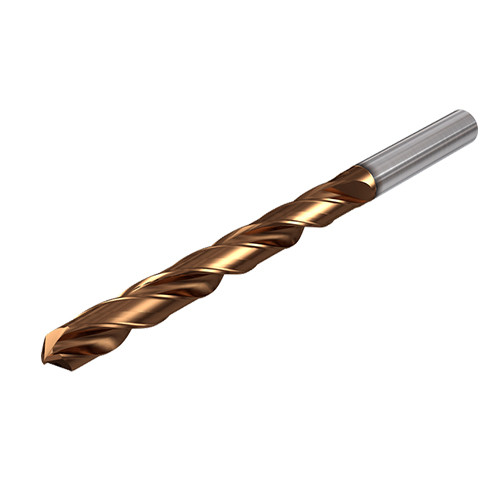

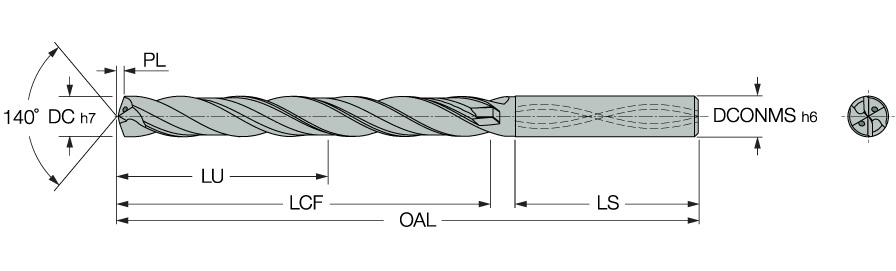

SC Drill; 5/8″ Dia. × 0.63″ Shank Dia. × 7.992″ OAL × 5.98″ LCF ; AlTiCrSiN
| Drill Bit Size / Cutting Diameter (DC) | 5/8″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/8″ | Grade | IC608 |
| Decimal Equivalent | 0.625″ | Measurement Type | Inch |
| Coating | AlTiCrSiN | Usable Length (LU) | 5.0468″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 5.98″ |
| Application | | Drilling | | Overall Length (OAL) | 7.992″ |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.114″ | Body Material | Carbide |
| Number of Teeth | 2 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.77″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round |
Product Features
| Family Description | Solid carbide drills with coolant holes, drilling depth 8xD (available in North America only) | Country of Origin | USA |
| Remarks | Based on DIN 6537 standard |
