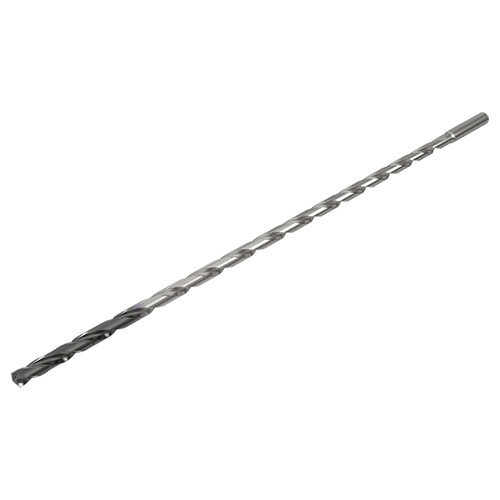

SCD 133-285-140 SXC20 IC908

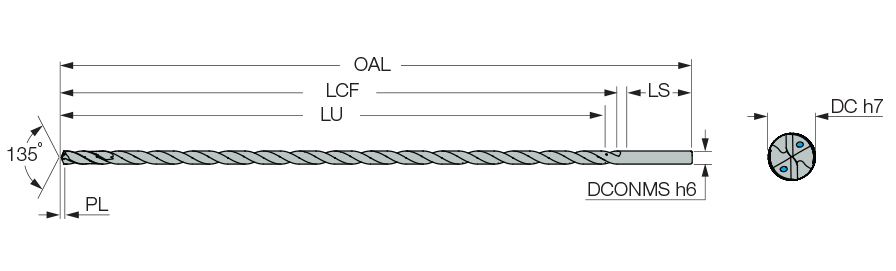

SC Drill; 13.3 mm Dia. × 14 mm Shank Dia. × 355 mm OAL × 305 mm LCF ; 135 Degrees ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 13.3 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.5236″ | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 13.3 mm | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 285 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 305 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Overall Length (OAL) | 355 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 2.195 mm | Body Material | Carbide |
| Number of Teeth | 2 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 45 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round |
Product Features
| Family Description | Solid carbide drills with internal coolant channels, drilling depth 20xD. | Country of Origin | USA |
Shipping Info
Package Weight
1.056
