SCD 075-128-080 SXC16 IC908

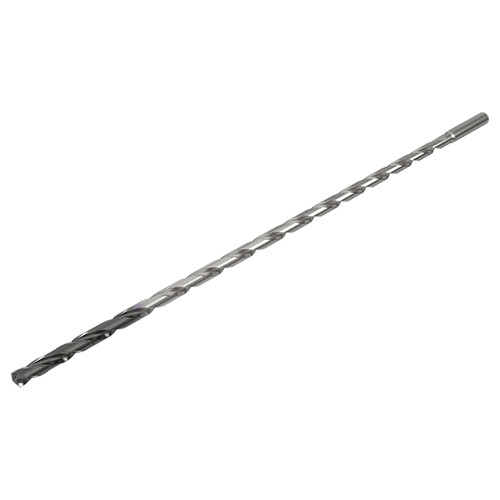

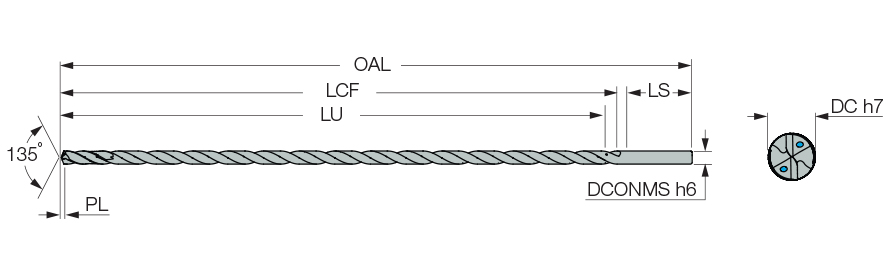

SC Drill; 7.5 mm Dia. × 8 mm Shank Dia. × 180 mm OAL × 140 mm LCF ; 135 Degrees ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 7.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2953″ | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.5 mm | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 128 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 140 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Overall Length (OAL) | 180 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 1.238 mm | Body Material | Carbide |
| Number of Teeth | 2 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 36 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round |
Product Features
| Family Description | Solid carbide drills with internal coolant channels, drilling depth 16xD. | Country of Origin | USA |
Shipping Info
Package Weight
0.227
