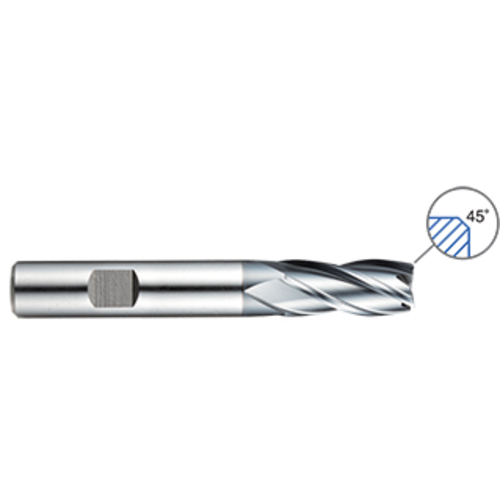

Square End Mill; 5/16″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; PM60 ; ALCrN ; Series GYG66
| Cutting Diameter (DC) | 5/16″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 3/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | HSSCo-PM | Measurement Type | Inch |
| Coating | AlCrN | Series/List # | GYG66 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | Variable | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.086
