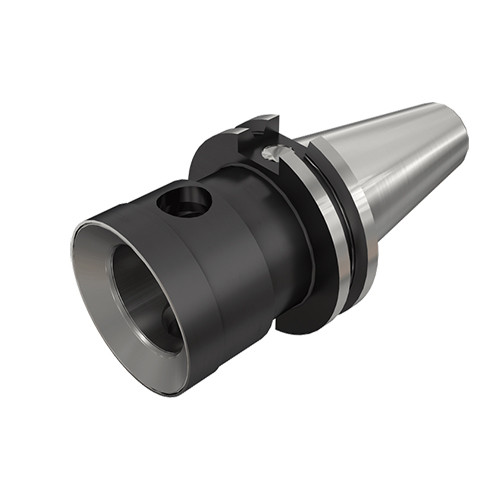

CATM 45 MB50

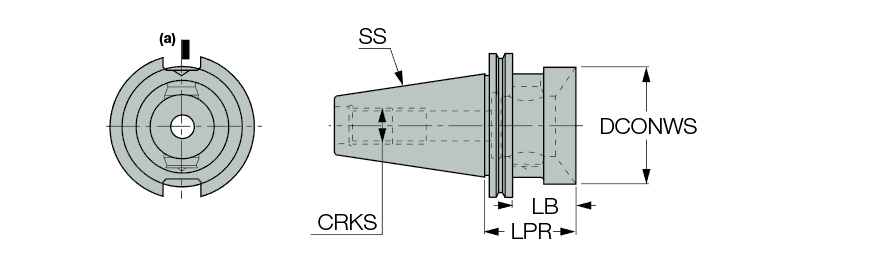

| Shank Size (SS) | 45 | Coolant Supply Property (CSP) | Coolant Thru |
| Protruding Length (LPR) | 48 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm | Measurement Type | Metric |
| Connection Size (CSI) | MB50 | Tool Type | DIN 69871 |
Product Features
| Family Description | MB modular boring connection system with CATM Form AD ANSIB5.5 Caterpillar tapered shanks and metric pull stud threads. | Country of Origin | Israel |
| Remarks | Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Package Weight
4.034
