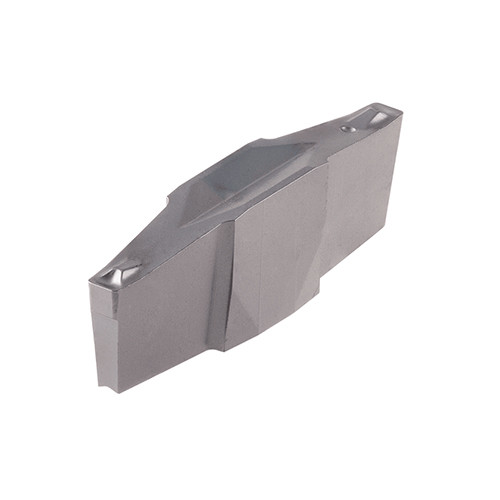

GDP 1.55-0.30-1404Q IC908
Parting Off Insert; 0.061″ CW × 0.823″ Length × 0.0118″ Corner Radius ; Carbide ; TiAlN ; IC908

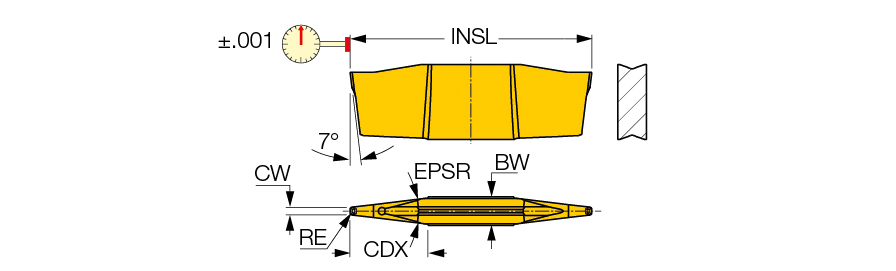

| Cutting Width (CW) | 0.061″ | Application | | Ext. Grooving | |
| Corner Radius (RE) | 0.0118″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Max. Grooving Feed (fg(max)) | 0.0071 ″/rev |
| Overall Length (OAL) | 0.823″ | Min. Grooving Feed (fg(min)) | 0.0047 ″/rev |
| Insert Length (INSL) | 0.823″ | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 0.256″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Grade | IC908 | Insert Width (W1) | 0.138″ |
Product Features
| Family Description | Inserts for precision grooving V-shaped piston grooves. Require price and delivery quotation and special tools. | Country of Origin | Israel |
Shipping Info
Package Weight
5.3
