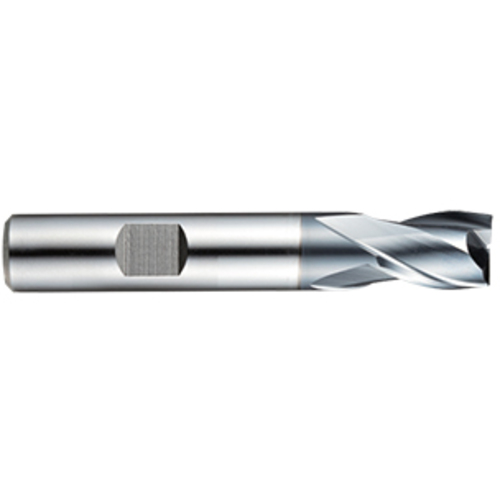

Square End Mill; 3/4″ Dia. × 1-5/16″ LOC × 3/4″ Shank Dia. × 3-7/16″ OAL ; 2 FL ; PM60 ; ALCrN ; Series GYG64
| Cutting Diameter (DC) | 3/4″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1-5/16″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Overall Length (OAL) | 3-7/16″ | Decimal Equivalent | 0.75″ |
| Cutting Edge Material | HSSCo-PM | Measurement Type | Inch |
| Coating | AlCrN | Series/List # | GYG64 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1.25
Package Height
1.25
Package Weight
0.3945
