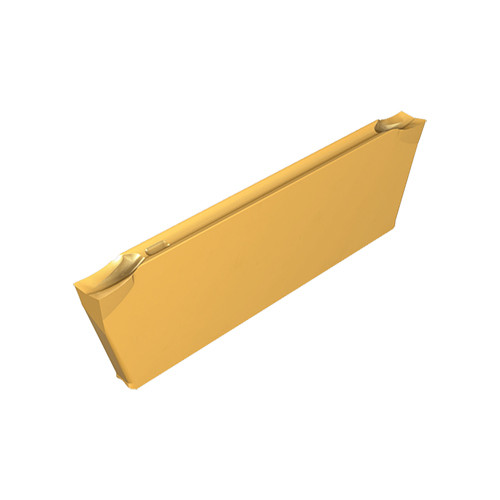

DGR 1000JS-15D-D22 IC1010
Parting Off Insert; 0.039″ CW × 0.531″ Length × 0″ Corner Radius ; Right Hand ; Carbide ; TiAlN, TiN ; IC1010

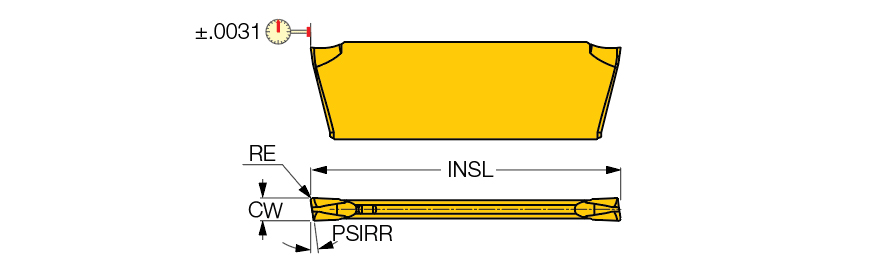

| Cutting Width (CW) | 0.039″ | Max. Grooving Feed (fg(max)) | 0.0024 ″/rev |
| Corner Radius (RE) | 0″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Insert Length (INSL) | 0.531″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.866″ |
| Coating | TiAlN, TiN | Measurement Type | Inch |
| Grade | IC1010 | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 15 Degrees |
| Application | | Parting | | Insert Width (W1) | 0.031″ |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts at low-to-medium feeds. Cutting edge with a positive rake. | Country of Origin | Israel |
Shipping Info
Package Weight
2
