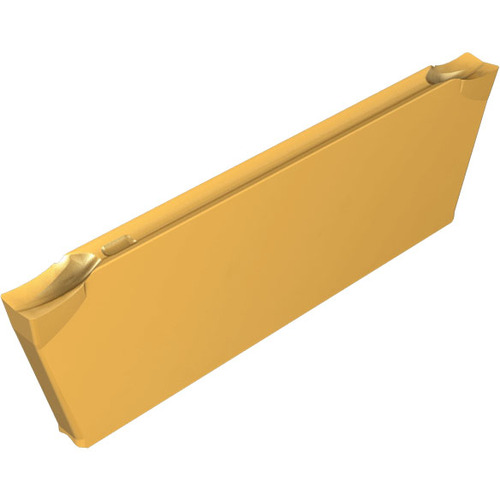

DGN 1000JS-D22 IC1010

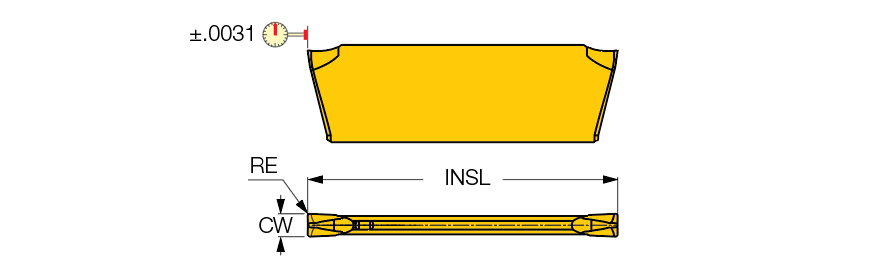

Parting Off Insert; 0.039″ CW × 0.531″ Length × 0″ Corner Radius ; Carbide ; TiAlN, TiN ; IC1010
| Cutting Width (CW) | 0.039″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Corner Radius (RE) | 0″ | Chip Breaker Type | J |
| Insert Length (INSL) | 0.531″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.866″ |
| Coating | TiAlN, TiN | Measurement Type | Inch |
| Grade | IC1010 | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00118″ |
| Applicable Material | | Steel | Stainless Steel | | Insert Width (W1) | 0.031″ |
| Max. Grooving Feed (fg(max)) | 0.0031 ″/rev |
Product Features
| Family Description | Parting & grooving, double-sided insert. First choice for soft materials and stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake. Low-to-medium feeds. JS-type has a sharp corner. | Country of Origin | Israel |
Shipping Info
Package Weight
2
