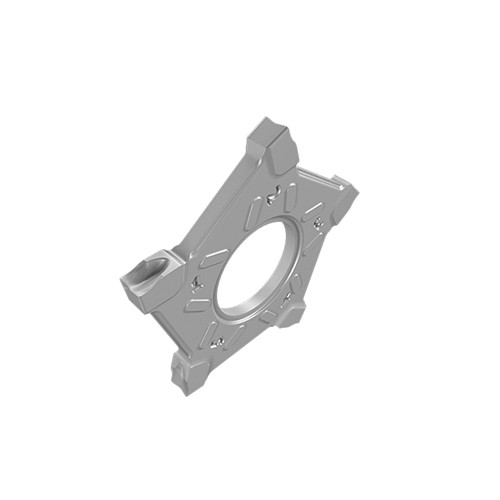

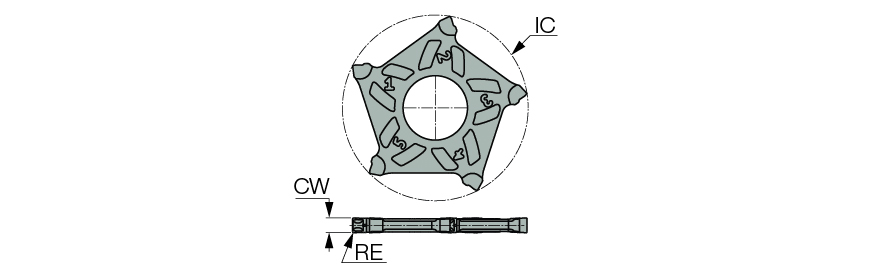

PMN D22-2J02 IC908
Parting Off Insert; 0.079″ CW × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiAlN ; IC908
| Cutting Width (CW) | 0.079″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | J |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00118″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Parting and precision grooving insert on soft parts, minimizes burr size. Most economical system with 5 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.021
