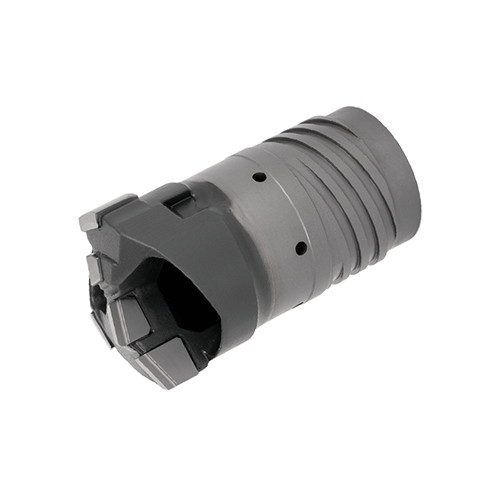

IDD-E3 1.851-2.035 NOM 2
| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 1.851″ |
| Connection Diameter Machine Side (DCONMS) | 1.693″ | Cutting Diameter Maximum (DCX) | 2.035″ |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Inch |
| Overall Length (OAL) | 3.11″ | Body Material | Steel |
| Connection Thread Size (Ts) | TDO-I11 |
Product Features
| Family Description | Deep double tube drills with external 4 start thread connection and brazed tips. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |
| Remarks | The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: ISO P, K, M, N materials Ordering example: IDD-E3 1.854 OT-P0 For quotation form and user guide, click on More Info |
