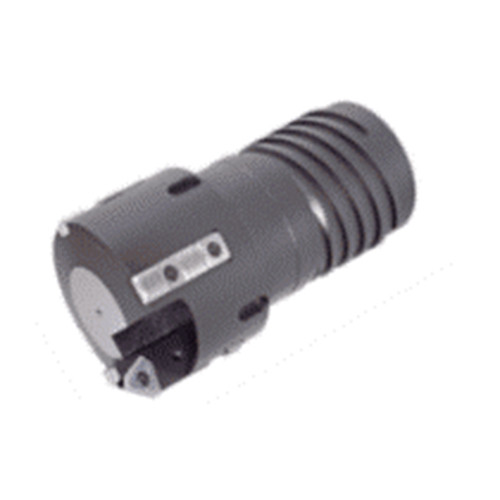

ISC-EC 2.386-2.558

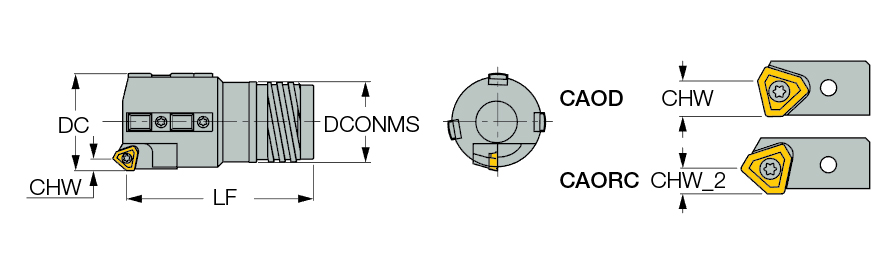

| Application | | Deep Drilling | | Connection Thread Size (Ts) | TS-I17 |
| Connection Diameter Machine Side (DCONMS) | 2.008″ | Cutting Diameter Minimum (DCN) | 2.386″ |
| Tool Type | Deep Hole / Gun Drill | Cutting Diameter Maximum (DCX) | 2.558″ |
| Overall Length (OAL) | 4.331″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
Product Features
| Family Description | Deep single tube counterbores with through hole, external 4 start thread Connection and a cartridge. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |

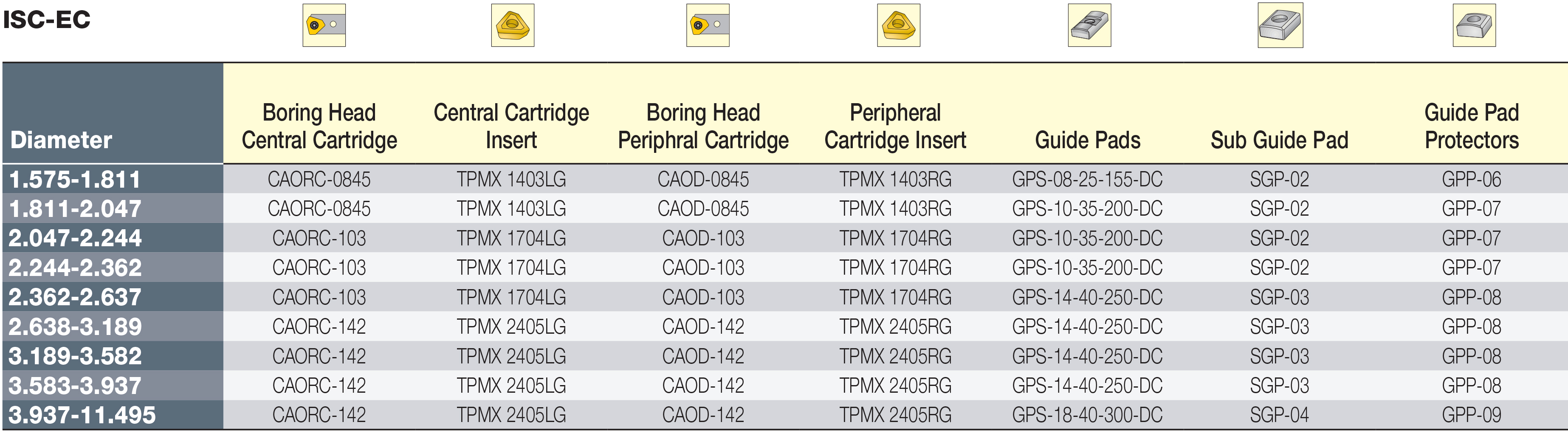

| Remarks | CAOD - Rough boring cartridge (large D.O.C.) CAORC - Precision boring cartridge Supplied with CAOD cartridge, unless ordered differently For quotation form and user guide, click on More Info Ordering example: ISC-EC 3.437 |
