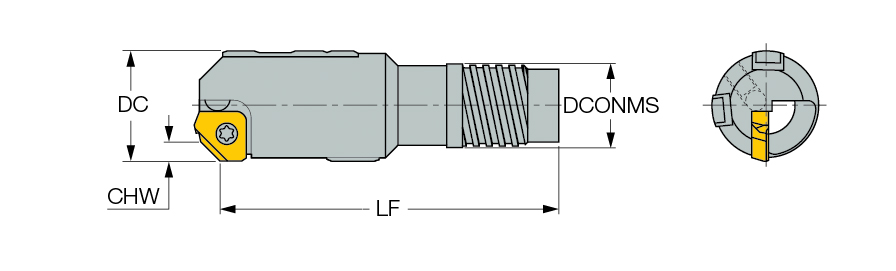

ISC-EA 1.130-1.220
| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 1.13″ |
| Connection Diameter Machine Side (DCONMS) | 0.925″ | Cutting Diameter Maximum (DCX) | 1.22″ |
| Overall Length (OAL) | 2.953″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Connection Thread Size (Ts) | TS-I8 |
Product Features
| Family Description | Deep single tube counterbores with through hole, external 4 start thread Connection and adjustable diameter. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |

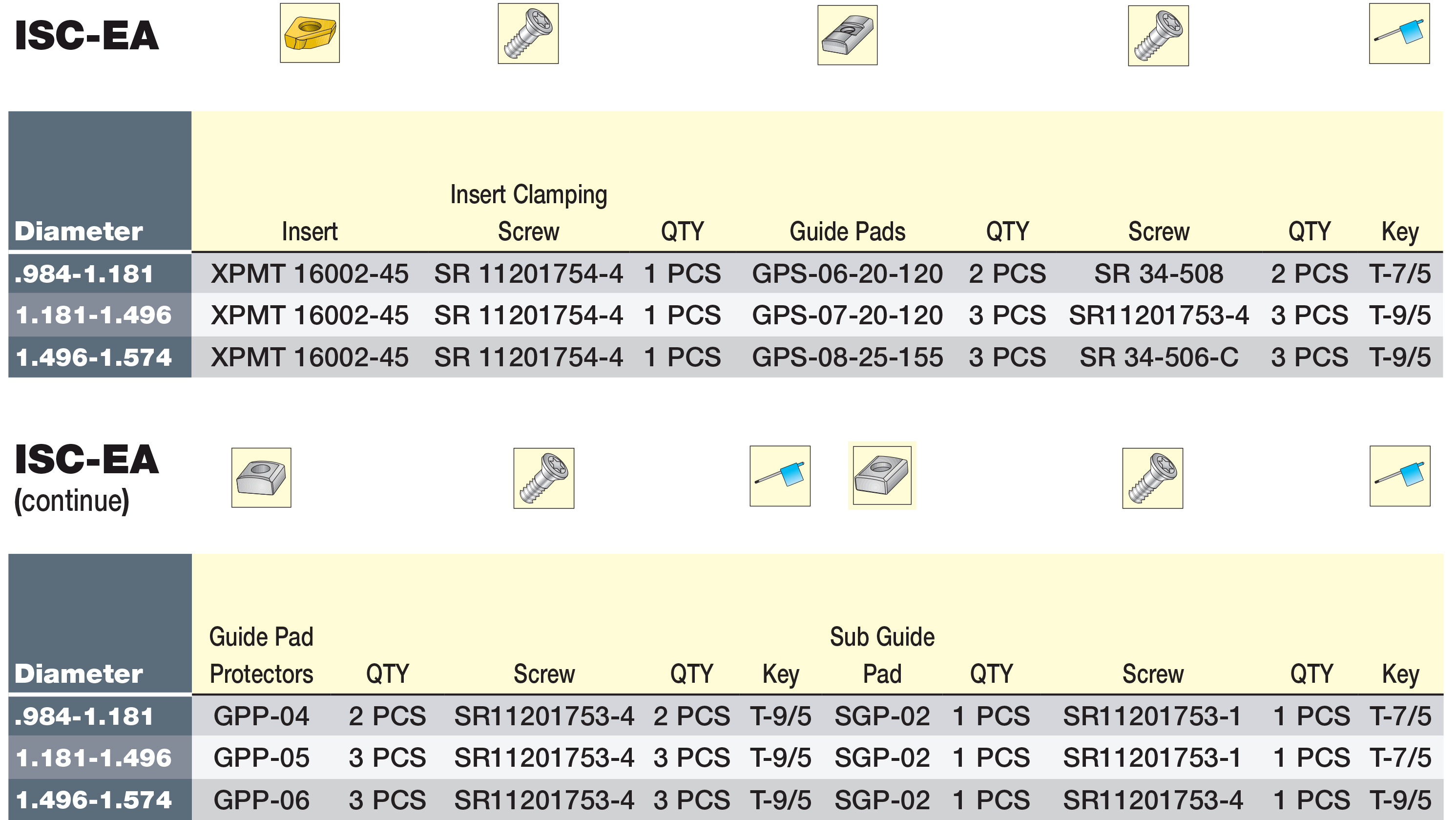

| Remarks | For user guide and related spare parts, click on More Info. |
Shipping Info
Package Weight
0
Related Documentation
