ISD-E0 .315-.353 NOM 0

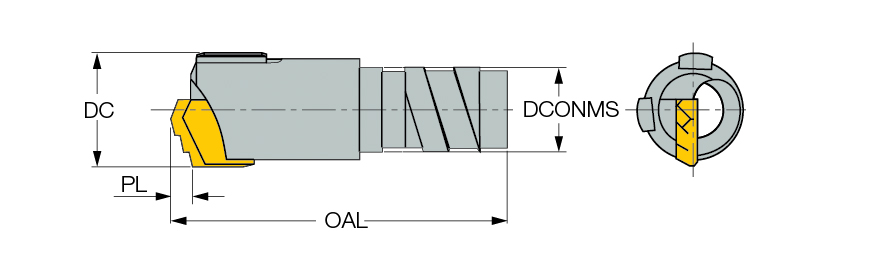

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 0.315″ |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Cutting Diameter Maximum (DCX) | 0.353″ |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Inch |
| Overall Length (OAL) | 1.378″ | Body Material | Steel |
| Connection Thread Size (Ts) | TS001 |
Product Features
| Family Description | Deep single tube drills with external single thread connection and a brazed single tip. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |
| Remarks | The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron For quotation form and user guide, click on More Info. |
