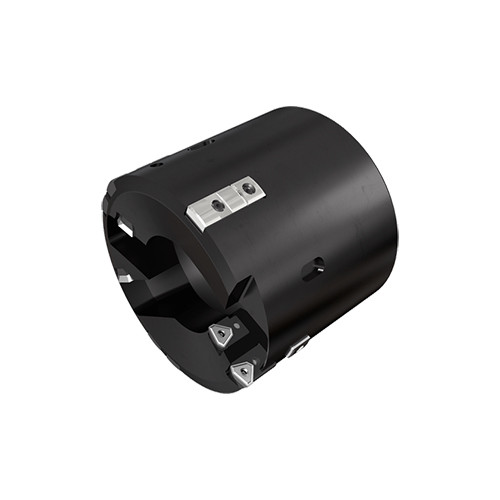

ISTR-IC 3.937-4.370

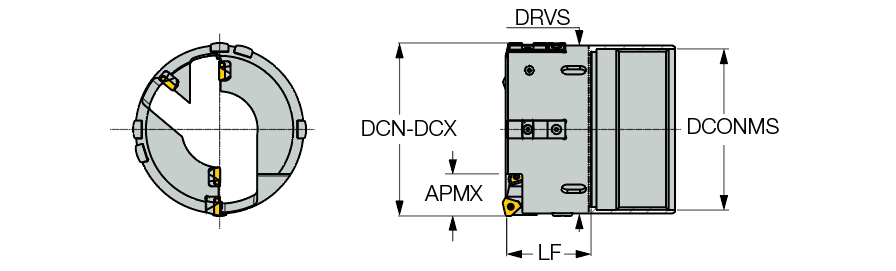

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 3.937″ |
| Connection Diameter Machine Side (DCONMS) | 3.543″ | Cutting Diameter Maximum (DCX) | 4.37″ |
| Functional Length (LF) | 5.472″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Connection Thread Size (Ts) | TS-O26 |
Product Features
| Family Description | Single tube trepanning drills with inner single start thread connection, cartridges and adjustable diameter (3.937-12.047″ dia.). | Country of Origin | Japan |

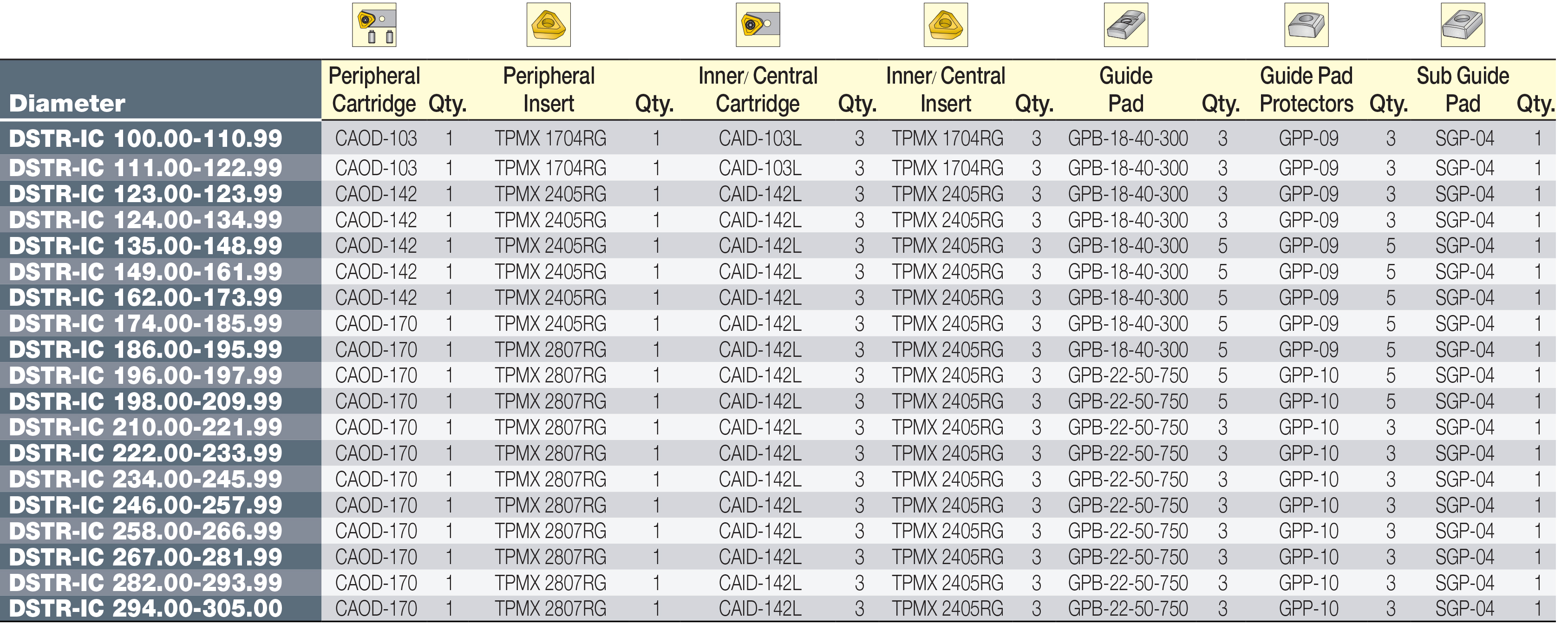

| Remarks | For spare parts and insert information, click on More Info Ordering example: DSTR-IC 120.55 |
