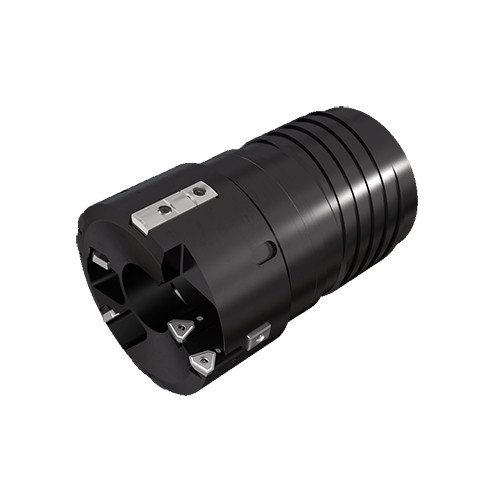

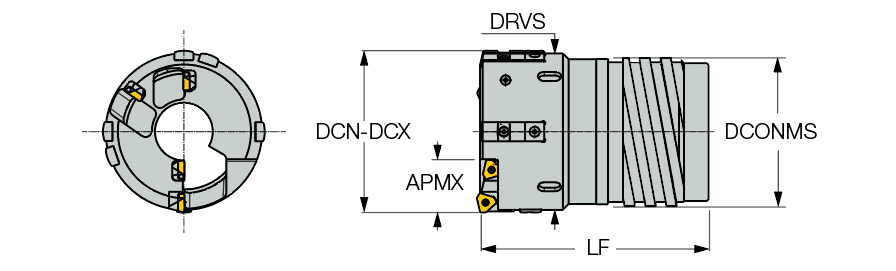

ISTR-EC 11.969-12.440
| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 11.969″ |
| Connection Diameter Machine Side (DCONMS) | 11.496″ | Cutting Diameter Maximum (DCX) | 12.44″ |
| Functional Length (LF) | 12.756″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Connection Thread Size (Ts) | TS-I40 |
Product Features
| Family Description | Single tube trepanning drills with outer 4-Start thread connection, cartridges and adjustable diameter (3.937-12.913″ dia.). | Country of Origin | Japan |
| Remarks | For spare parts and insert information, click More Info Ordering example: DSTR-EC 120.55 |
