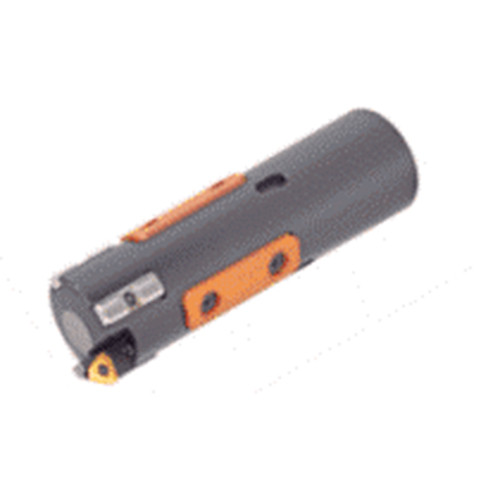

ISC-IC 2.677-2.952

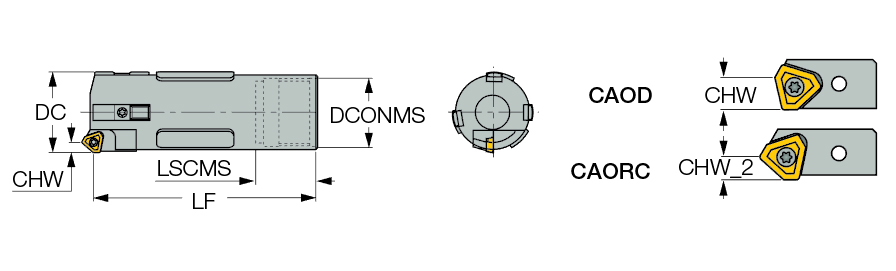

| Application | | Deep Drilling | | Connection Thread Size (Ts) | TS-O22 |
| Connection Diameter Machine Side (DCONMS) | 2.323″ | Cutting Diameter Minimum (DCN) | 2.677″ |
| Tool Type | Deep Hole / Gun Drill | Cutting Diameter Maximum (DCX) | 2.952″ |
| Shank Length (LS) | 1.575″ | Measurement Type | Inch |
| Overall Length (OAL) | 6.693″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Deep single tube counterbores with a through hole, internal single start thread connection and a cartridge. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |

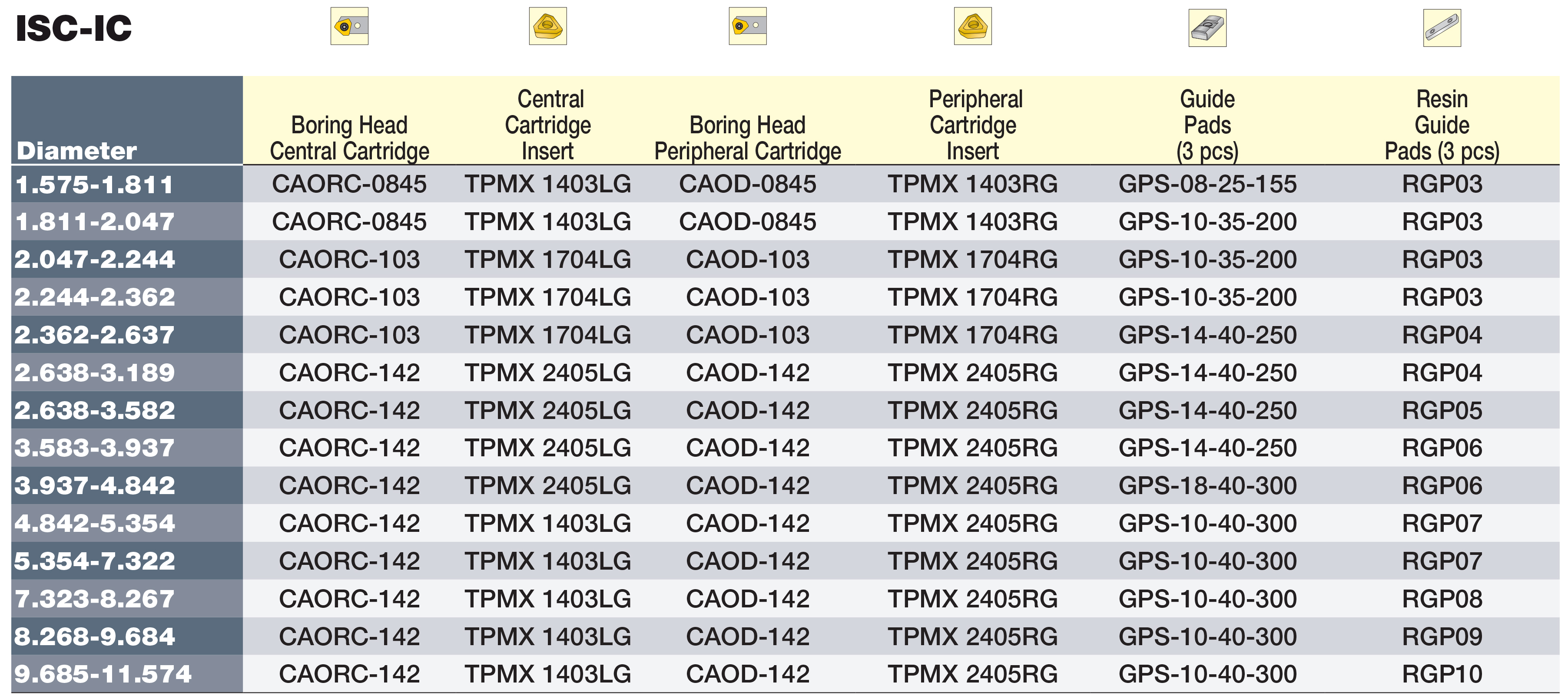

| Remarks | CAOD - Rough boring cartridge (large D.O.C.) CAORC - Precision boring cartridge Supplied with CAOD cartridge, unless ordered differently For quotation form and user guide, click on More Info |
