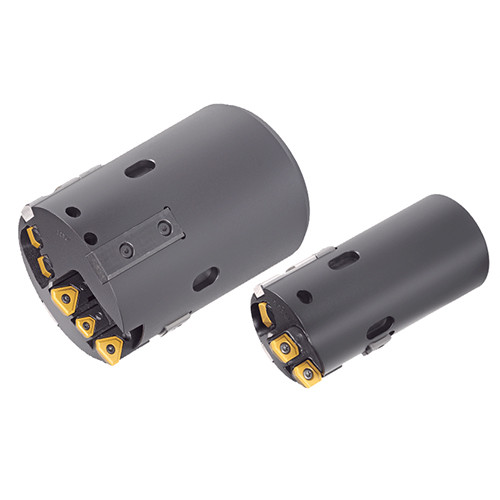

ISD-IC 9.173-9.212

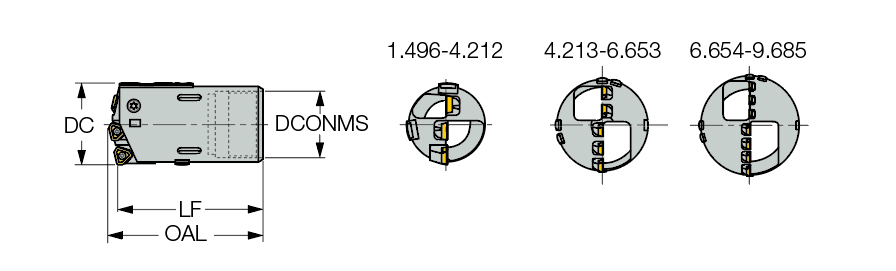

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 9.173″ |
| Connection Diameter Machine Side (DCONMS) | 8.307″ | Cutting Diameter Maximum (DCX) | 9.212″ |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Inch |
| Overall Length (OAL) | 8.543″ | Body Material | Steel |
| Connection Thread Size (Ts) | TS-O36 |
Product Features
| Family Description | Deep single tube drills with internal Single-Start Thread Connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |
| Remarks | Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as specified on More Info For quotation form and user guide, click on More Info Ordering example: DSD-IC 2.650 |
