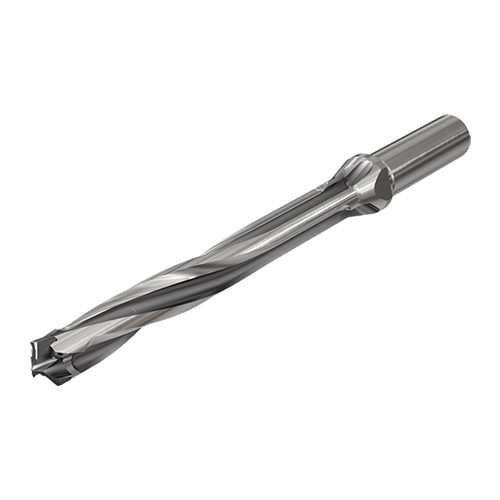

D3N 0472-378-063R-8D H13

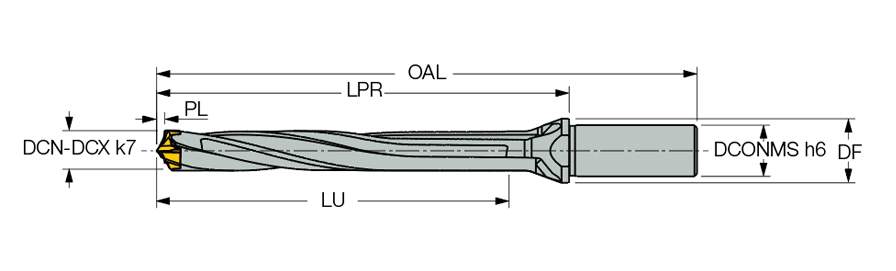

Drill; 0.472″ Dia. × 0.472″ Min. Dia. × 0.488″ Max. Dia. × 5/8″ Shank Dia. × 6.65″ OAL × 3.886″ LU ; Round Shank
| Cutting Diameter (DC) | 0.472″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3.886″ | Measurement Type | Inch |
| Shank Type | Round | Master Insert Identification (MIID) | H3P 120-IQ |
| Application | | Drilling | | Point Length (PL) | 0.107″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Body Material | Steel |
| Insert Seat Size Code (SSC) | 12 | Flange Diameter (DF) | 0.787″ |
| Cutting Diameter Minimum (DCN) | 0.472″ | Decimal Equivalent | 0.472″ |
| Cutting Diameter Maximum (DCX) | 0.488″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 4.76″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 6.65″ |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and round shank. Drilling Depth 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.386
