D3N 120-096-16A-8D H13

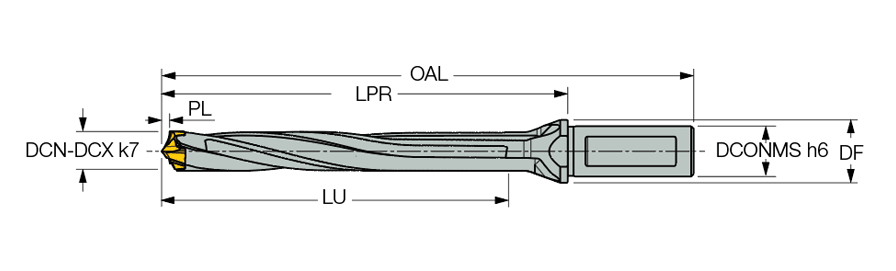

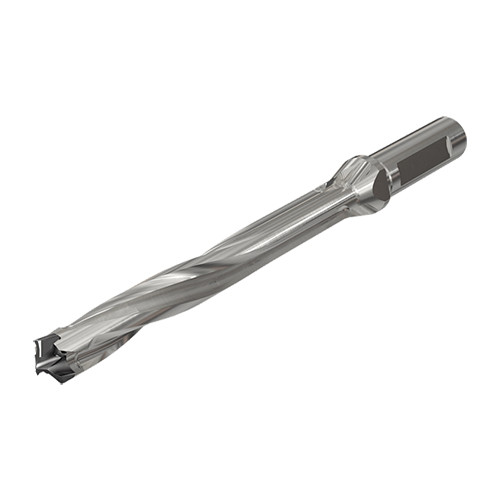

Drill; 12 mm Dia. × 12 mm Min. Dia. × 12.4 mm Max. Dia. × 16 mm Shank Dia. × 168.9 mm OAL × 98.71 mm LU ; Weldon Shank

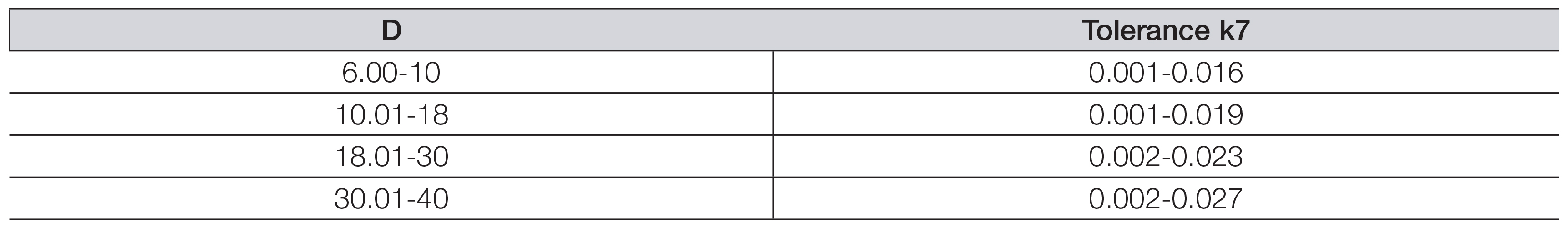

| Cutting Diameter (DC) | 12 mm | Protruding Length (LPR) | 120.9 mm |
| Usable Length (LU) | 98.71 mm | Overall Length (OAL) | 168.9 mm |
| Shank Type | Weldon | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 120-IQ |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Point Length (PL) | 2.71 mm |
| Insert Seat Size Code (SSC) | 12 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 12 mm | Flange Diameter (DF) | 20 mm |
| Cutting Diameter Maximum (DCX) | 12.4 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.443
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
