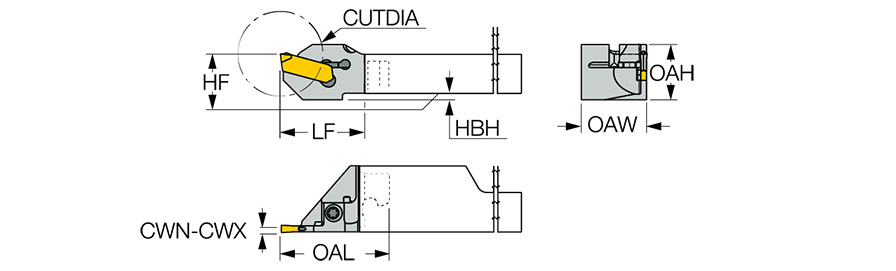

| Cutting Width Minimum (CWN) | 0.087″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.118″ | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 0.945″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.291″ | Head Bottom Offset Height (HBH) | 0.079″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
Product Features

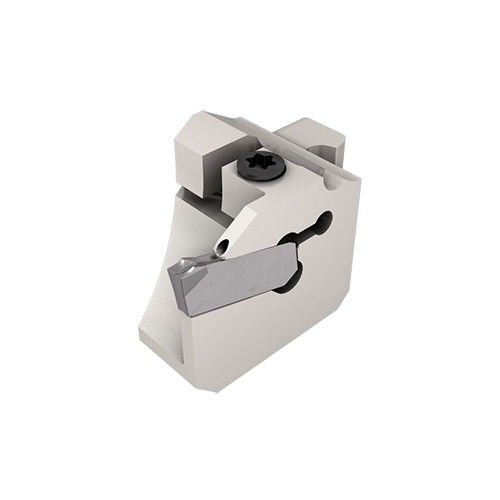

| Family Description | Screw Lock JETCUT Modular Heads Carrying CUTGRIP Inserts for Grooving and Turning on Swiss-Type Machines | Country of Origin | Israel |
| Remarks | Use only RH Shank with RH Head and LH Shank with LH Head exept NQCH12R/16R... heads. When using GIVR/L inserts, tool holder's seat needs to be modified |
Shipping Info
Package Weight
0.121
