Y-PCHRS 16-17-JHP

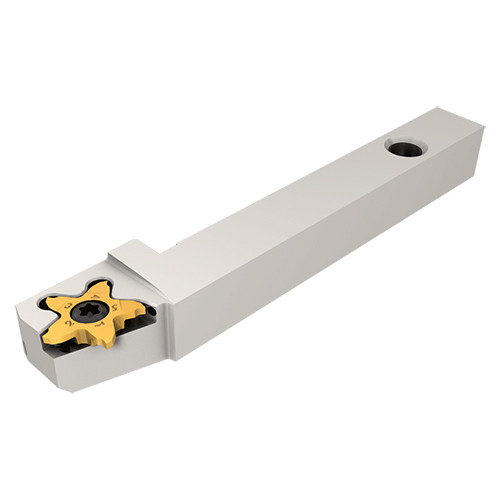

Grooving Toolholder; 0.63″ × 0.63″ Shank Size × 5.138″ OAL ; Steel

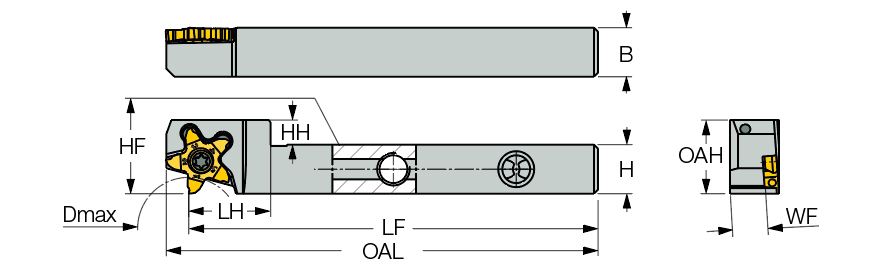

| Shank Height (H) | 0.63″ | Overall Length (OAL) | 5.138″ |
| Shank Width (B) | 0.63″ | Application | | Ext. Back Turning | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | Y Axis Groove Turn for Swiss | |
| Functional Width (WF) | 0.484″ | Body Material | Steel |
| Head Length (LH) | 0.787″ | Measurement Type | Inch |
Product Features
| Family Description | Y-axis screw lock JETCUT integral tools for 5 edged PENTACUT inserts for grooving, parting, and recessing on Swiss-Type machines. | Country of Origin | Israel |
Shipping Info
Package Weight
0.635
