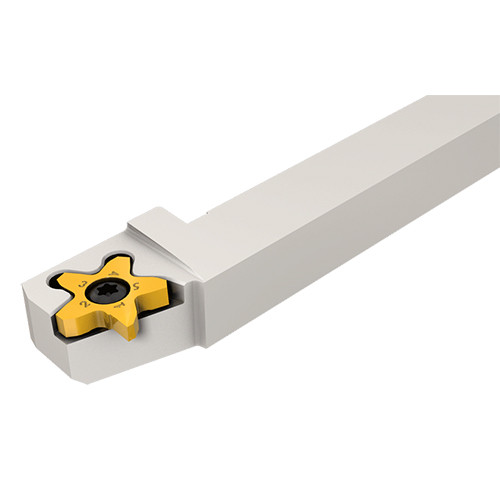

Y-PCHRS 12-17
Grooving Toolholder; 12 mm × 12 mm Shank Size × 105.5 mm OAL ; Steel

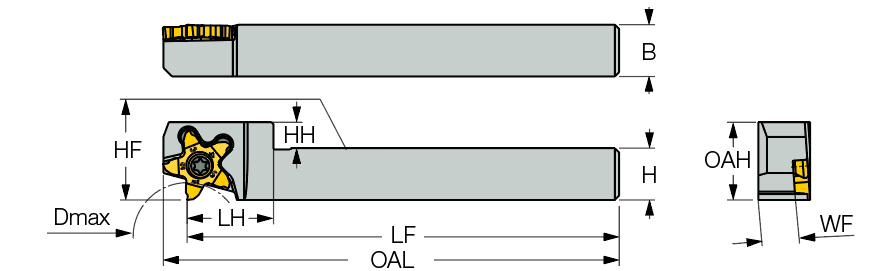

| Shank Height (H) | 12 mm | Overall Length (OAL) | 105.5 mm |
| Shank Width (B) | 12 mm | Application | | Ext. Back Turning | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | Y Axis Groove Turn for Swiss | |
| Functional Width (WF) | 8.6 mm | Body Material | Steel |
| Head Length (LH) | 20 mm | Measurement Type | Metric |
Product Features
| Family Description | Y-axis screw lock integral tools carrying 5 edged PENTACUT inserts for grooving, parting, and recessing on Swiss-Type machines. | Country of Origin | Israel |
Shipping Info
Package Weight
0.368
