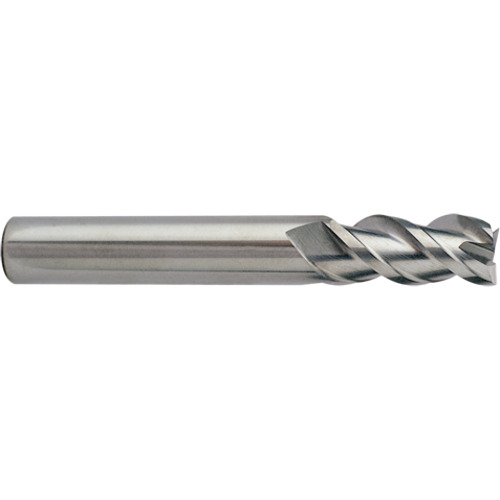

Corner Radius End Mill; 5/8″ Dia. × 1-5/8″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 3 FL ; Carbide ; Bright ; Series E5983
| Cutting Diameter (DC) | 5/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Corner Radius 45 Degree Helix Regular Length |
| Overall Length (OAL) | 3-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | E5983 |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.125
Package Width
1
Package Height
1
Package Weight
0.452
