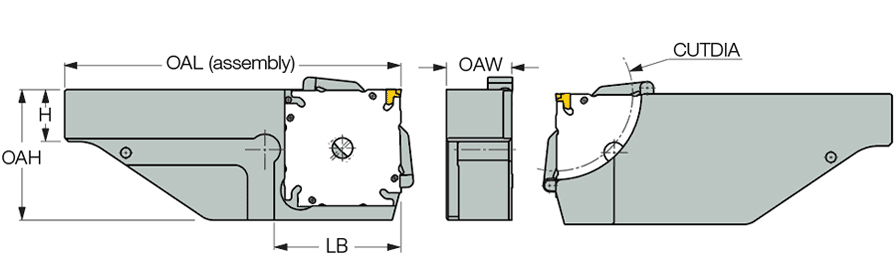

| Shank Height (H) | 1″ | Work Piece Parting Diameter Maximum (CUTDIA) | 3.228″ |
| Overall Length (OAL) | 6.496″ | Cutting Direction (HAND) | Right Hand |
| Overall Height (OAH) | 2.52″ | Measurement Type | Inch |
| Body Material | Steel | Tool Assembly Length (LTA) | 6.496″ |
Product Features

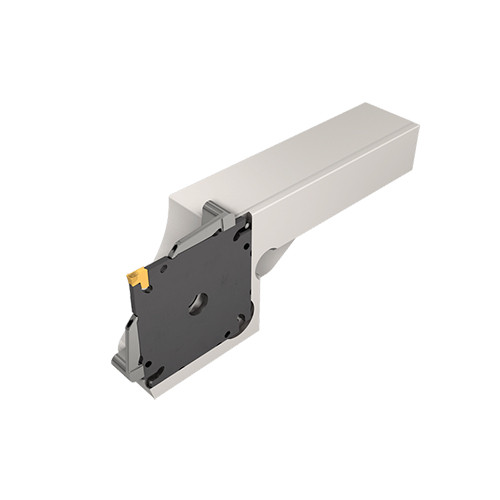

| Family Description | Tool blocks for square TANG-F-GRIP (TGAQ-ECD) parting and grooving adapters with high-pressure coolant, for Machining next to spindle. | Country of Origin | Israel |
| Remarks | The tool cannot be used for grooving applications when the workpiece diameter is larger than 4.64 A separate crown for each insert width should be ordered separately. |
Shipping Info
Package Weight
3.192
