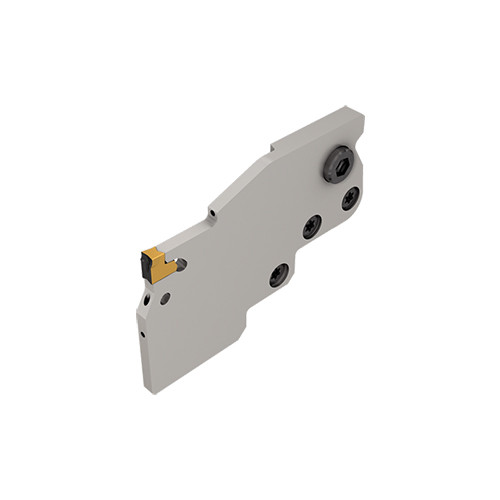

TAGPAD-Y-D125R-3C
Parting Off Holder; 108.9 mm OAL × 2.8 mm CW Min. × 3.5 mm CW Max. × 75.5 mm OAH ; Steel
| Body Width (WB) | 2.4 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 2.8 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 3.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 125 mm |
| Overall Length (OAL) | 108.9 mm | Cutting Direction (HAND) | Right Hand |
| Overall Height (OAH) | 75.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 105.9 mm | Body Width_2 (WB_2) | 6 mm |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Y-axis adapters for parting & grooving on multi-task machines & turning centers, with JHP channels and TANG-GRIP inserts. | Country of Origin | Israel |

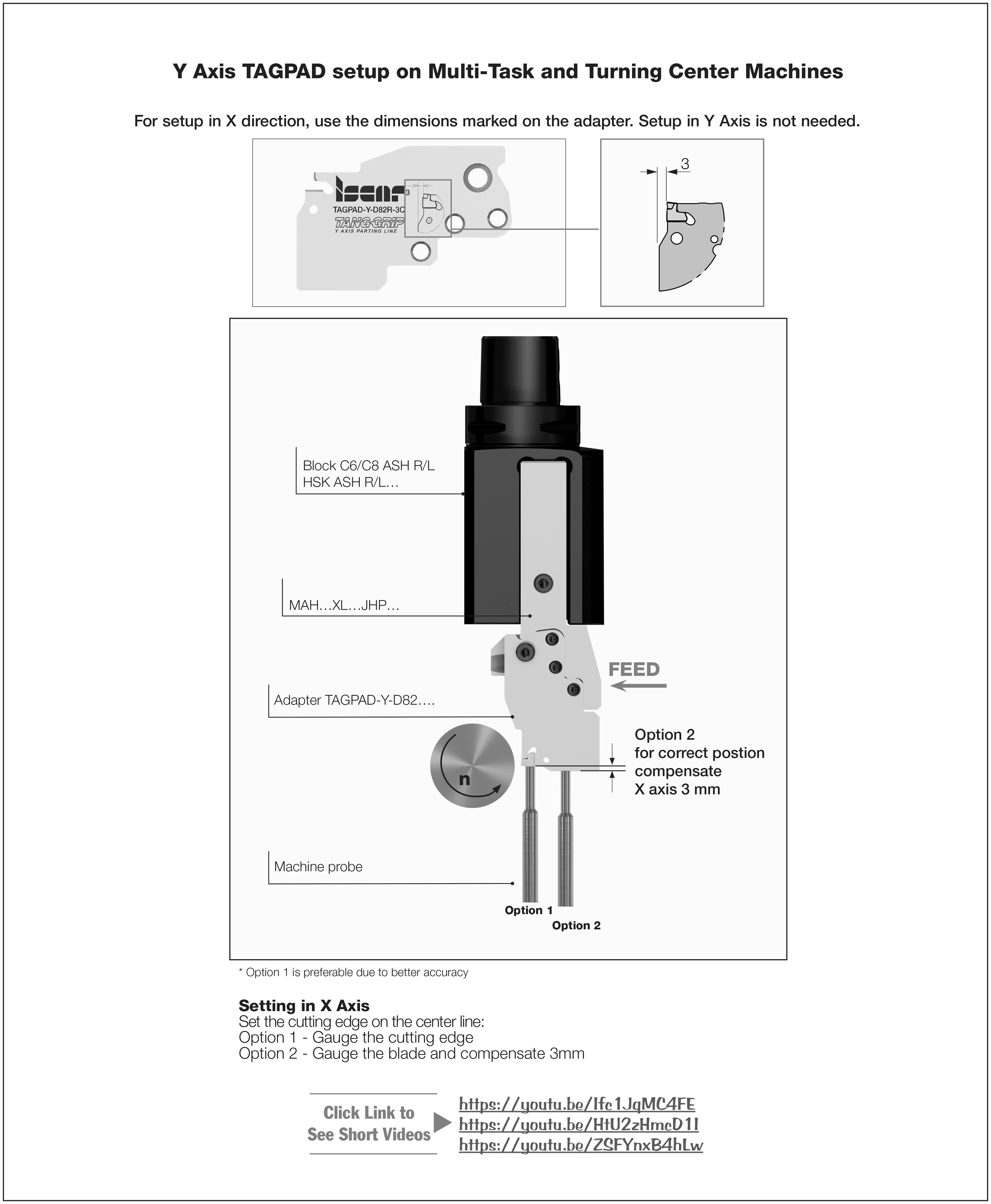

| Remarks | For set up procedure click on "More Info" |
Shipping Info
Package Weight
234
