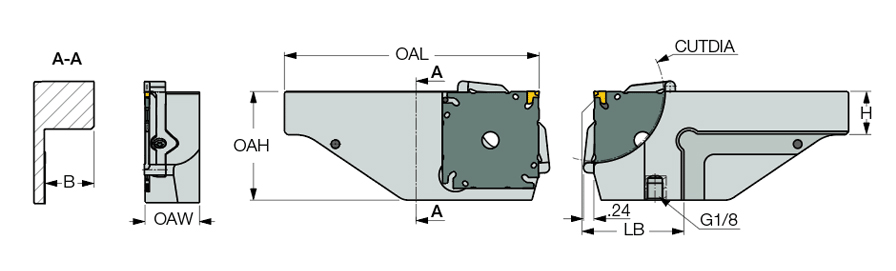

| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1.023″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.559″ |
| Overall Length (OAL) | 5.472″ | Measurement Type | Inch |
| Overall Height (OAH) | 2.165″ | Tool Assembly Length (LTA) | 2.44″ |
Product Features

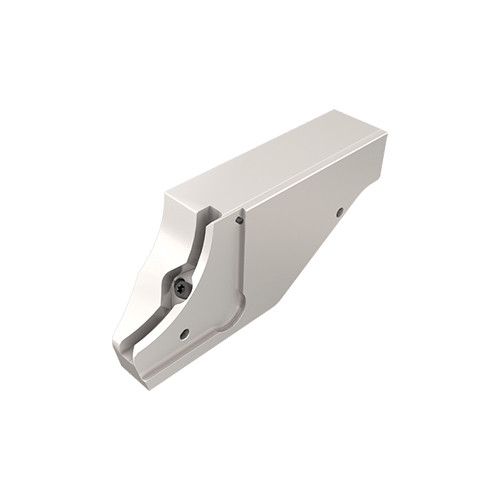

| Family Description | Tool blocks for square TANG-F-GRIP (TGAQ-ECD) parting and grooving adapters for high-pressure coolant. | Country of Origin | Israel |

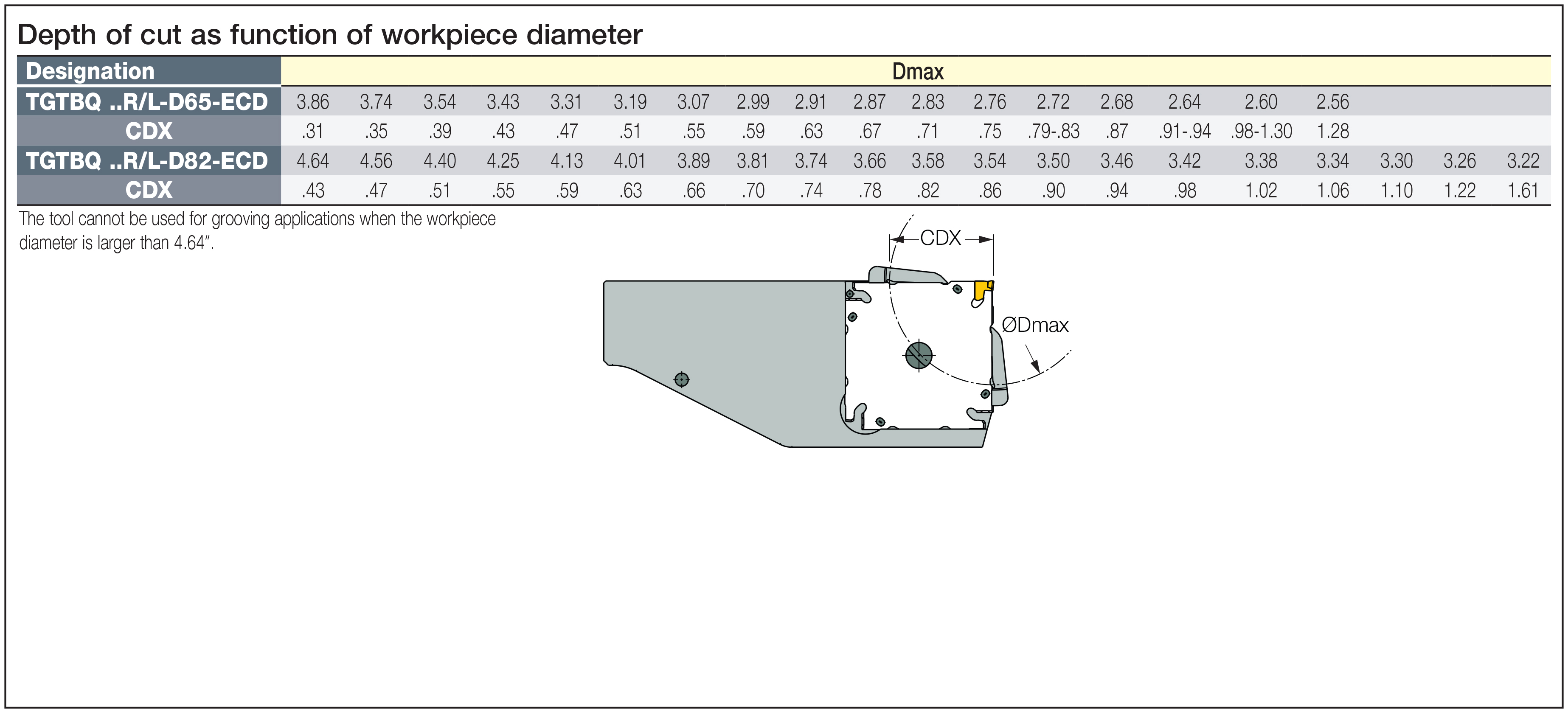

| Remarks | The tool cannot be used for grooving applications when the workpiece diameter is larger than 4.64 A separate crown for each insert width should be ordered separately. |
Shipping Info
Package Weight
2.432
