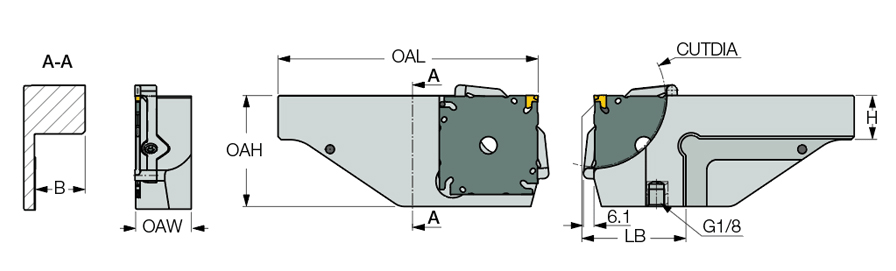

| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 65 mm |
| Overall Length (OAL) | 129 mm | Measurement Type | Metric |
| Overall Height (OAH) | 55 mm | Tool Assembly Length (LTA) | 3.29 mm |
Product Features
| Family Description | Tool blocks for square TANG-F-GRIP (TGAQ-ECD) parting and grooving adapters for high-pressure coolant. | Country of Origin | Israel |

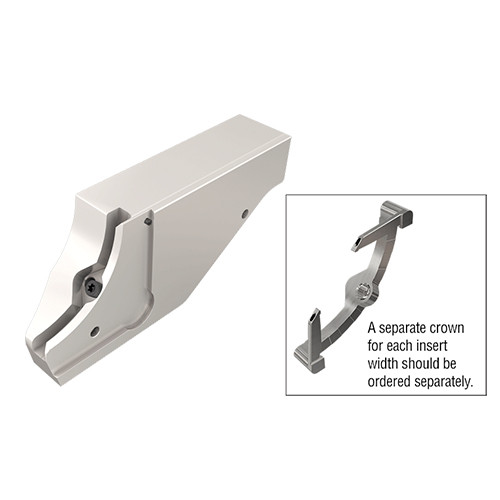

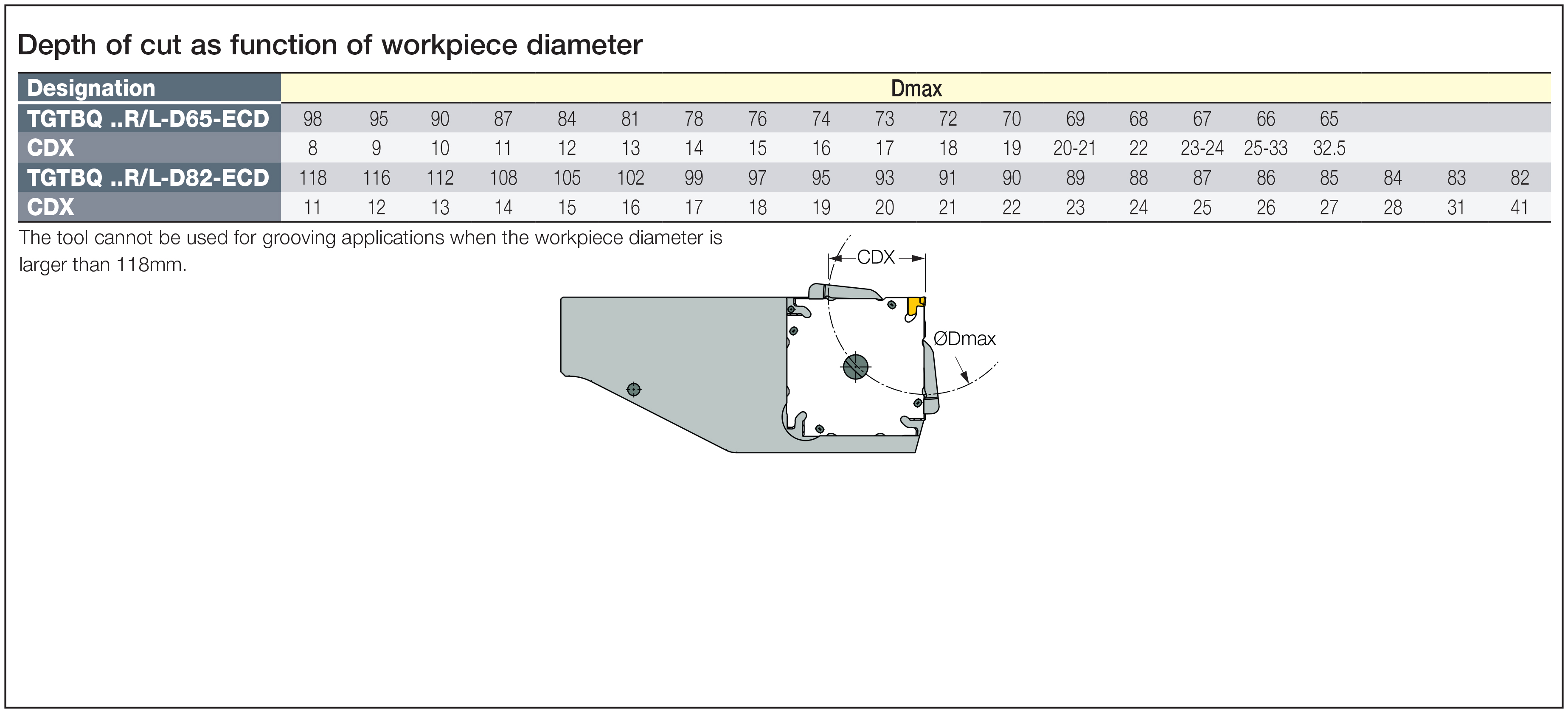

| Remarks | The tool cannot be used for grooving applications when the workpiece diameter is larger than 118mm A separate crown for each insert width should be ordered separately |
Shipping Info
Package Weight
1.790
