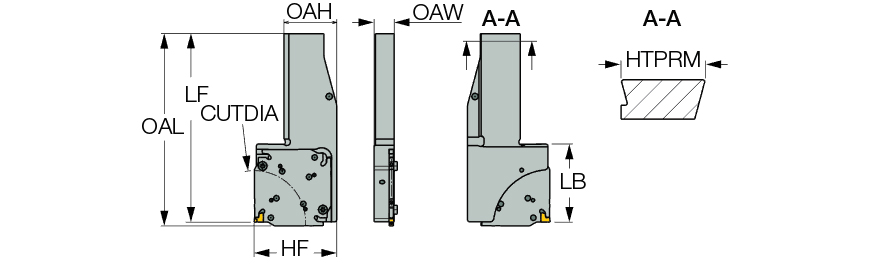

| Overall Length (OAL) | 6.024″ | Body Material | Steel |
| Overall Height (OAH) | 1.654″ | Work Piece Parting Diameter Maximum (CUTDIA) | 3.228″ |
| Prism Height (HTPRM) | 1.26″ | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 5.906″ | Measurement Type | Inch |
Product Features

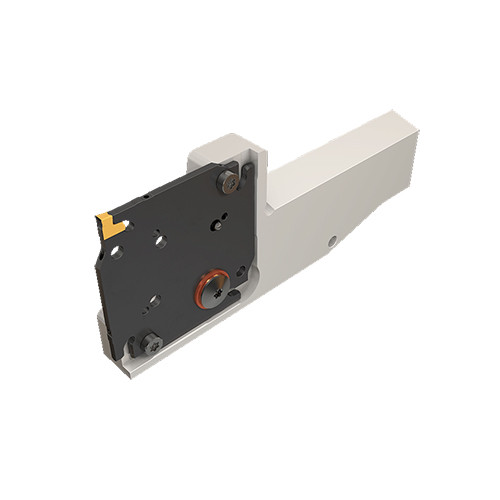

| Family Description | Y-axis intermediate prismatic holders for TANG-F-GRIP and DO-F-GRIP square JHP adapters on multi-task machines for parting and grooving. | Country of Origin | Israel |

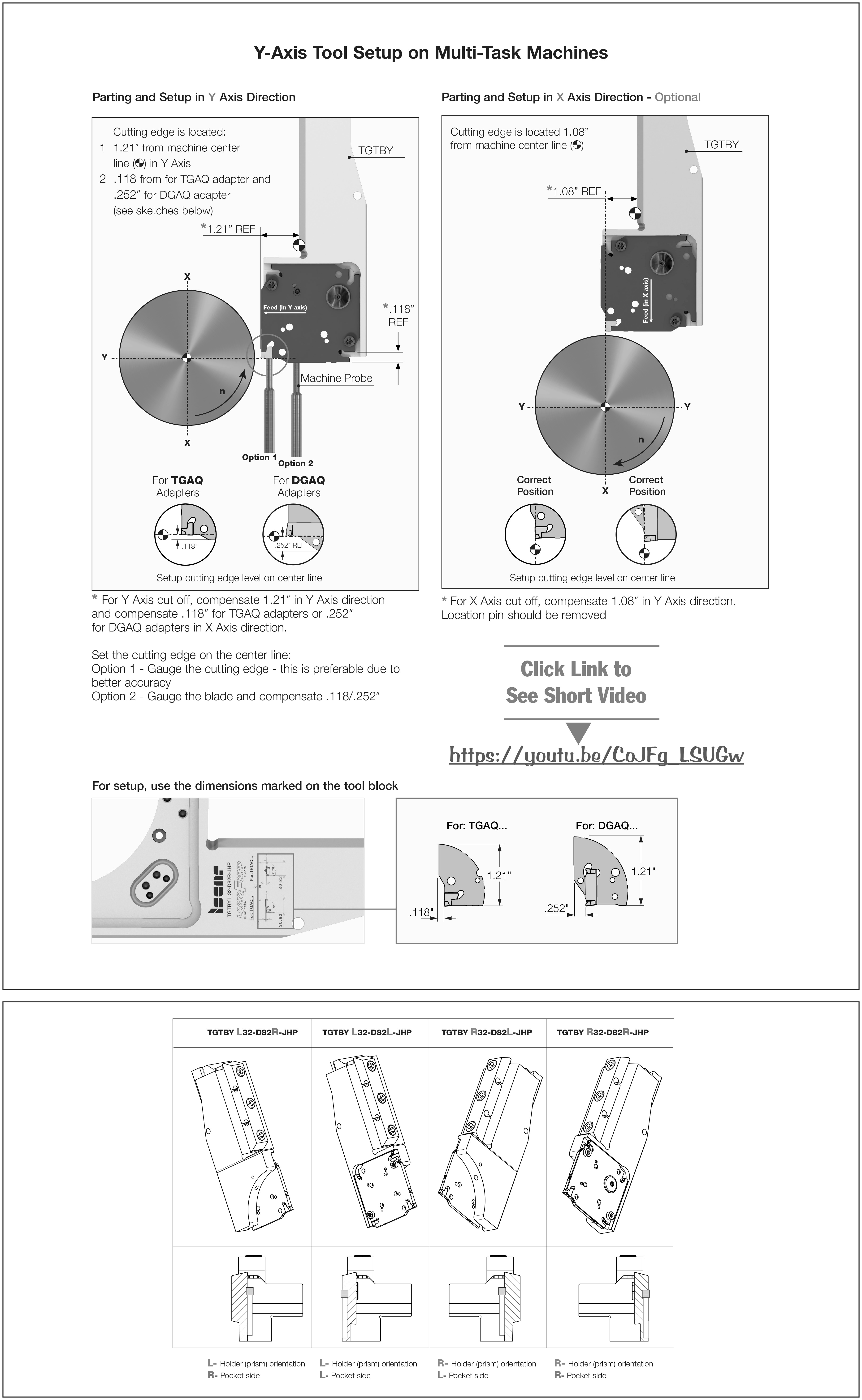

| Remarks | Can be used also for X-axis (multi-task machines) - location pin should be removed For animation and set up procedure click on "More Info" The tool types shown are currently unavailable in the USA, Canada, China, Japan and Korea |
Shipping Info
Package Weight
1.858
