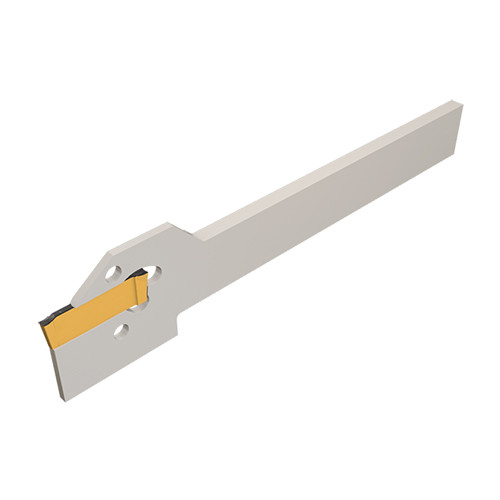

DGFS 5-24-3

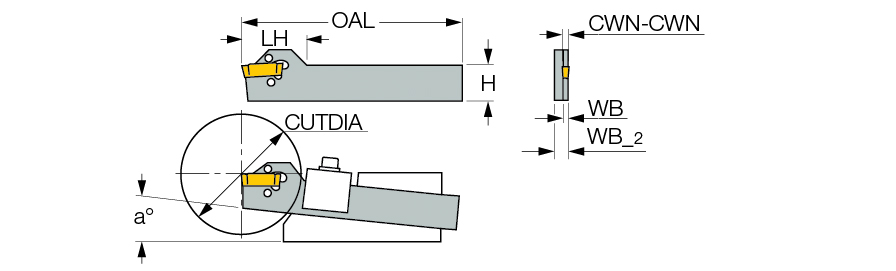

| Shank Height (H) | 0.937″ | Body Material | Steel |
| Body Width (WB) | 0.094″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 0.118″ | Work Piece Parting Diameter Maximum (CUTDIA) | 3.15″ |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 5.906″ | Measurement Type | Inch |
| Head Length (LH) | 1.26″ | Body Width_2 (WB_2) | 0.126″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 1.654″ |
Product Features
| Family Description | Blades for multi-spindle machines - replacement for HSS and brazed tools, using double-ended inserts. | Country of Origin | Israel |
| Remarks | DG..1.0 insert can be mounted into pocket sizes 2 and 3. in which case the pocket width has to be modified -click on More Info. |
Shipping Info
Package Weight
0.183
Related Documentation

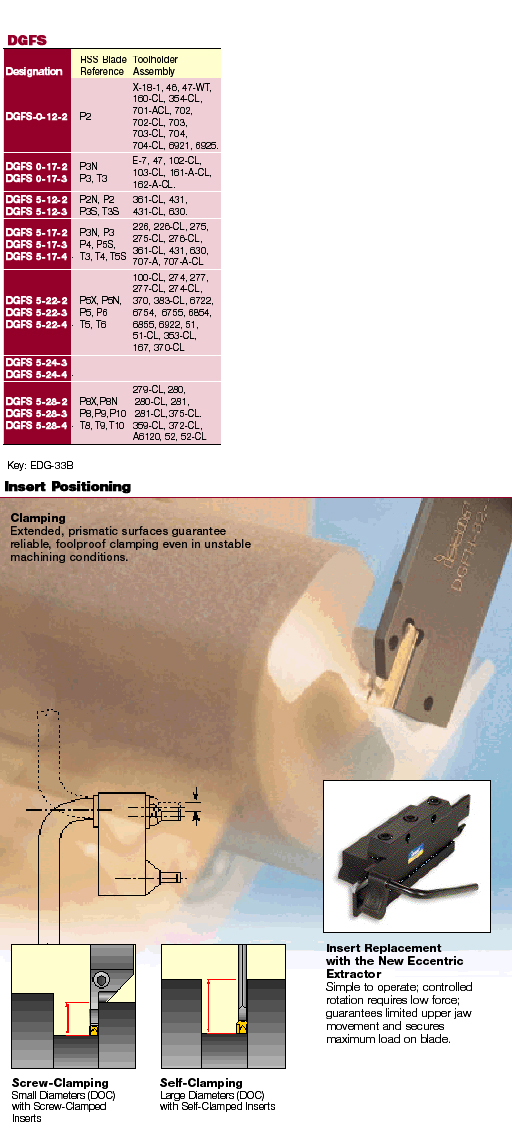

For DG.-1... inserts, modify holder pocket according to depth capacity table.
