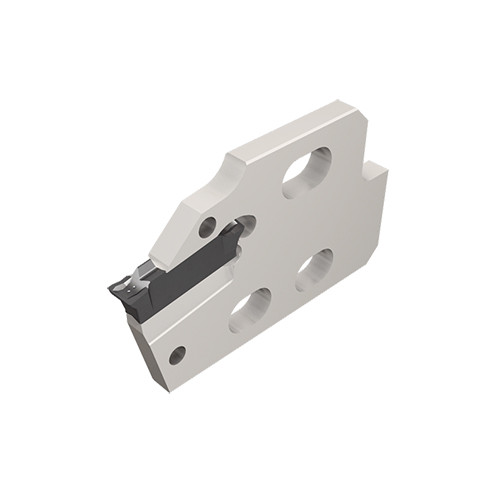

DGAM 33-5

Item # EH012301708

Brand: Iscar

MFG #: 2301708

Alternate MFG #: 02301708

Legacy Part #: EH012301708

UPC #: 7291075212662

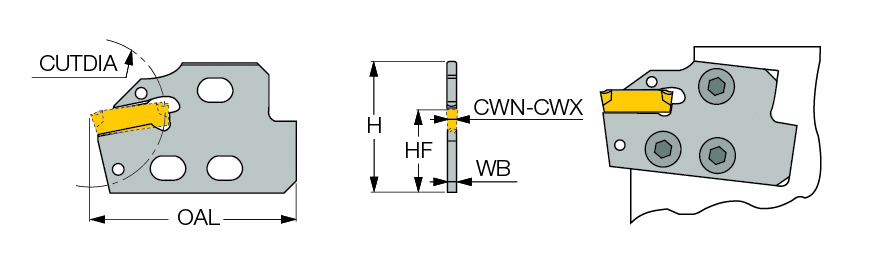

Shank Height (H)

1.3″

Application

| Ext. Grooving | Parting |

Body Width (WB)

0.126″

Body Material

Steel

Cutting Width Minimum (CWN)

0.189″

Tool Type

Blades and adapters for Parting & Grooving

Cutting Width Maximum (CWX)

0.197″

Measurement Type

Inch

Overall Length (OAL)

2.06″

Tool Assembly Length (LTA)

2.055″

Product Features

Family Description

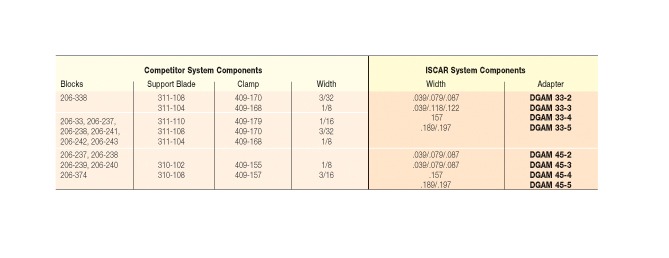

Parting and grooving replacement adapter for DO-GRIP double-ended inserts, for other manufacturers' holders

Country of Origin

Israel

Remarks

DG..1.0 insert can be mounted into pocket sizes 2 and 3. In that case the pocket width has to be modified -click on More Info.

Package Weight

0.035
