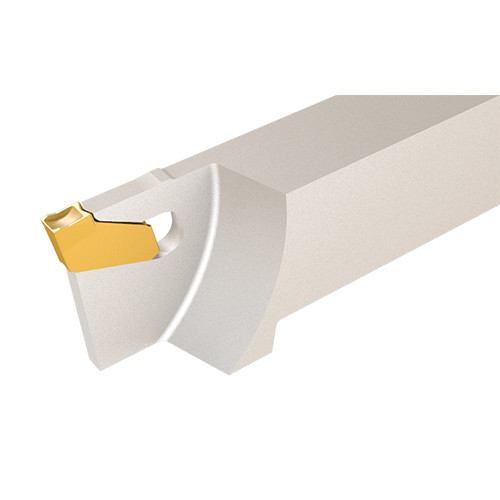

SGTFR 2525-6
Parting Off Holder; 150 mm OAL × 5.51 mm CW Min. × 6.5 mm CW Max. ; Steel

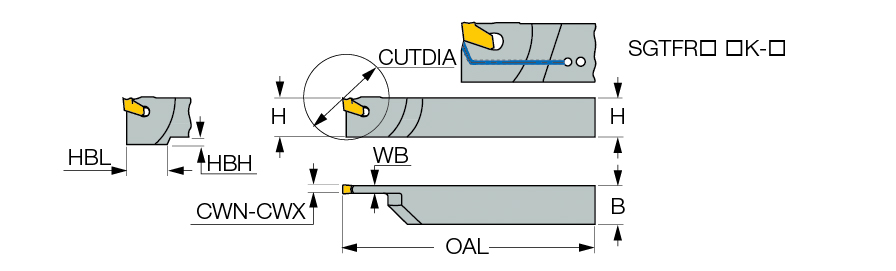

| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 5.2 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 76 mm |
| Cutting Width Minimum (CWN) | 5.51 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 6.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Head Bottom Offset Height (HBH) | 0 mm |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 63.9 mm |
Product Features
| Family Description | SELF-GRIP integral shank tool for parting and grooving | Country of Origin | Israel |
Shipping Info
Package Weight
1.382
