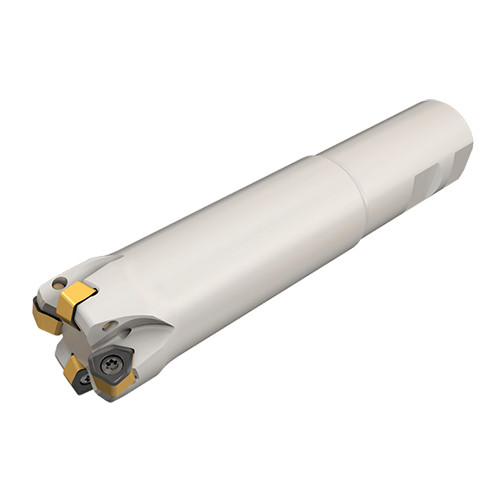

FF EWXD0.62-2-1.5W0.62-04
Indexable End Mill; 0.333″ Dia. × 0.03″ LOC × 5/8″ Shank Dia. × 3.55″ OAL × 1-1/2″ LU ; 2 FL ; Weldon Shank ; 17 Degrees

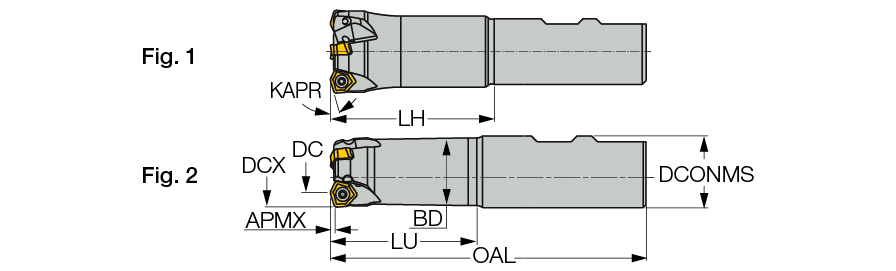

| Cutting Diameter (DC/DCX) | 1/3″ | Functional Length (LF) | 2.597″ |
| Cutting Diameter (DC) | 1/3″ | Tool Type | Fast Feed Endmill |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 0.03″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 3.55″ | Body Diameter (BD) | 0.58″ |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | H600 WXCU 040310T | Body Material | Steel |
| Weight of Item (WT) | 0.25 Lbs | Connection Code Machine Side (CCMS) | Weldon |
| Head Length (LH) | 1.6″ | Cutting Diameter Maximum (DCX) | 5/8″ |
Product Features
| Family Description | HELIDO UPFEED endmills for fast feed, carrying double-sided Inserts with 6 cutting edges. | Country of Origin | Israel |
| Remarks | For machining recommendations, radius for programming and adaptation click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
0.370
