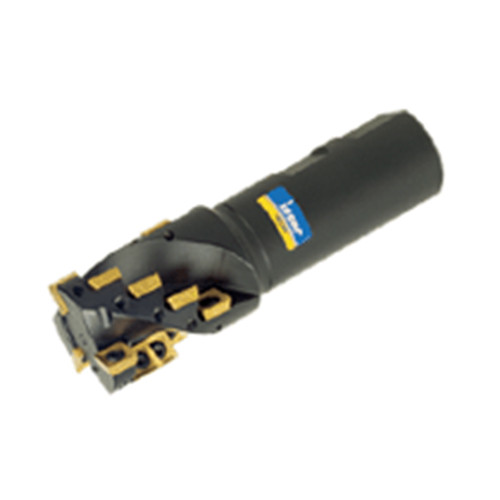

SPK D40-42-W32-10
| Application | | Rampdown | Shouldering | Slotting | | Master Insert Identification (MIID) | SPMT 100404R-HQ-M |
| Cutting Item Count (CICT) | 15 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 43 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 40 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Flute Count (NOF) | 3 | Tool Type | 90° Extended flute endmills |
| Overall Length (OAL) | 125 mm | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | Extended flute endmills carrying square inserts | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
1.852
