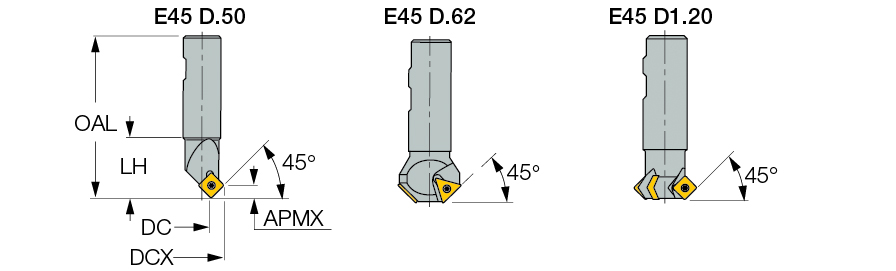

E45 D1.20-W1.00

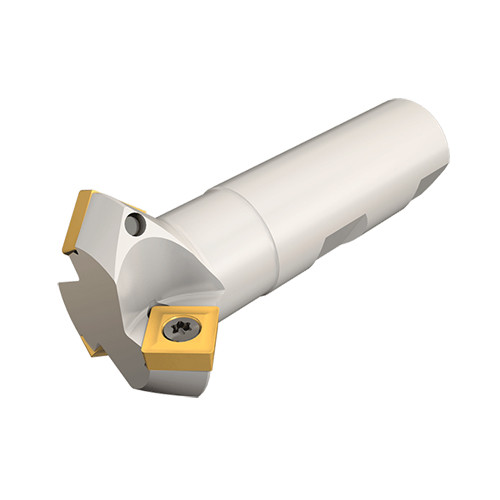

Indexable End Mill; 1.2″ Dia. × 0.31″ LOC × 1″ Shank Dia. × 3-3/4″ OAL ; Weldon Shank ; 45 Degrees
| Cutting Diameter (DC/DCX) | 1.2″ | Head Length (LH) | 0.118″ |
| Cutting Diameter (DC) | 1.2″ | Functional Length (LF) | 2.609″ |
| Cutting Item Count (CICT) | 3 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.31″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3-3/4″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Measurement Type | Inch |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | SCMT 432 | Cutting Diameter Maximum (DCX) | 1.815″ |
| Weight of Item (WT) | 0.8 Lbs |
Product Features
| Family Description | 45° chamfering endmills. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.021
