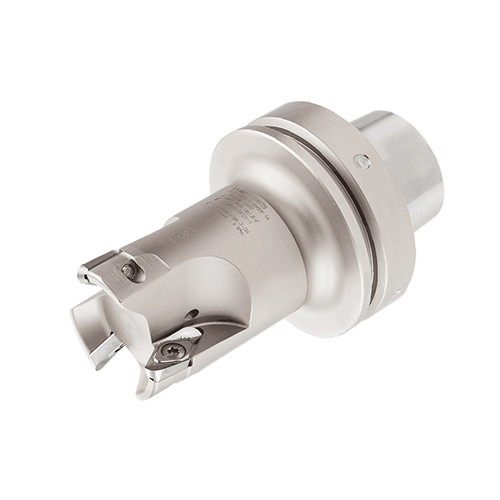

HSM90S EALD2-3-HSK63FM*14
Indexable End Mill; 2″ Dia. × 0.531″ Max Depth × 2.48″ Shank Dia. × 4.984″ OAL × 2.88″ LU ; HSK FM Shank ; 90 Degrees

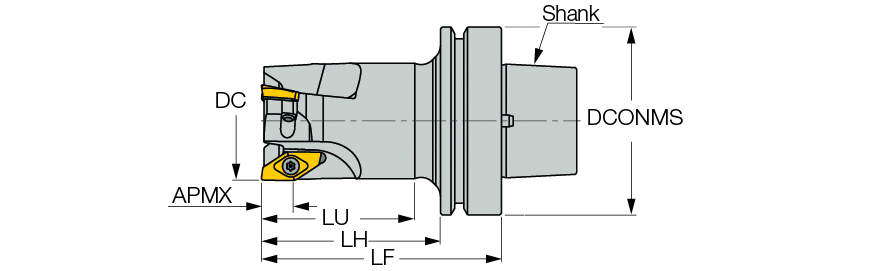

| Cutting Diameter (DC/DCX) | 2″ | Head Length (LH) | 3″ |
| Cutting Diameter (DC) | 2″ | Functional Length (LF) | 4″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° Indexable for Aluminum |
| Depth of Cut Maximum (APMX) | 0.531″ | Usable Length (LU) | 2.88″ |
| Overall Length (OAL) | 4.984″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | HSK FM | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 8 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Master Insert Identification (MIID) | HSM90S APCR 140508R-P | Connection Code Machine Side (CCMS) | HSK |
| Weight of Item (WT) | 3.23 Lbs |
Product Features
| Family Description | Endmills for machining aluminum at high RPM, carrying inserts with a special pocket design for high resistance to centrifugal forces. Feature integral HSK FM type shanks for Makino machine models MAG series A flange-pin spindles. | Country of Origin | Israel |
| Remarks | Important: When machining at very high cutting speeds it is recommended to replace the screw when replacing the insert Insert tightening torque: 53 (lbfxin) |
Shipping Info
Package Weight
3.763
