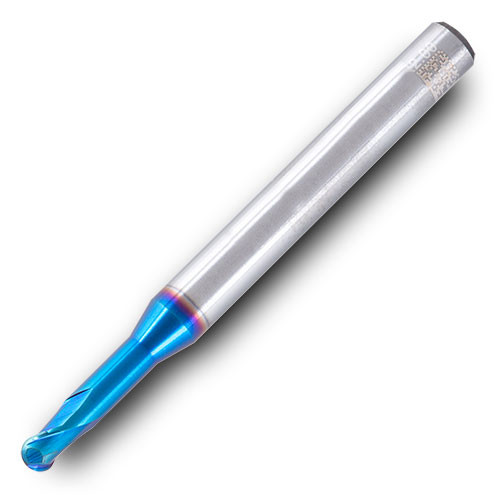

45B01008U0RB058 IN2203
| Cutting Diameter (DC) | 1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 0.8 mm | Neck Diameter (DN) | 0.95 mm |
| Overall Length (OAL) | 55 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Grade | IN2203 |
| Coating | AlTiCrSiN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Usable Length (LU) | 20 mm |
Product Features
| Country of Origin | Israel |
