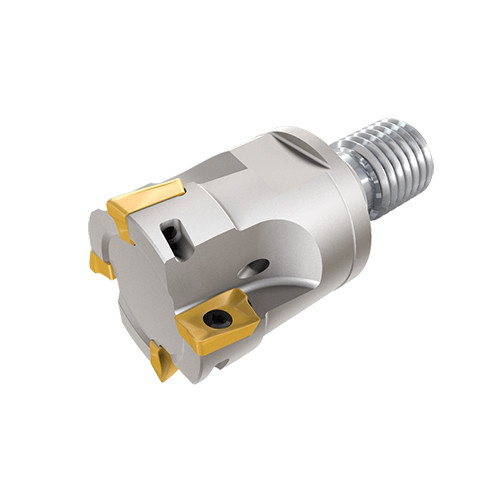

HM90 E90A-D1.00-4-M12
Indexable End Mill; 1″ Dia. × 0.39″ LOC × 0.83″ Shank Dia. × 2.24″ OAL × 1.22″ LU ; 4 FL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Functional Length (LF) | 1.38″ |
| Cutting Diameter (DC) | 1″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 4 | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Depth of Cut Maximum (APMX) | 0.39″ | Usable Length (LU) | 1.22″ |
| Overall Length (OAL) | 2.24″ | Flute Count (NOF) | 4 |
| Ramping Angle Maximum (RMPX) | 2.5 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Counter Boring | Fast Feed Milling | Helical Interpolation | Rampdown | Shouldering | Slotting | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.83″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | APKT 1003PDR-HM | Measurement Type | Inch |
| Weight of Item (WT) | 0.19 Lbs | Body Material | Steel |
| Head Length (LH) | 1.22″ | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features
| Family Description | HELI2000 90° endmills with a FLEXFIT threaded adaptation carrying HM90 AP.. 1003... inserts. | Country of Origin | Germany |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. 1- with standard square insert 2- with FF (fast feed) insert For adaptation, click on More Info |
Shipping Info
Package Weight
0.297
