16N17734T6RP14 IN2005

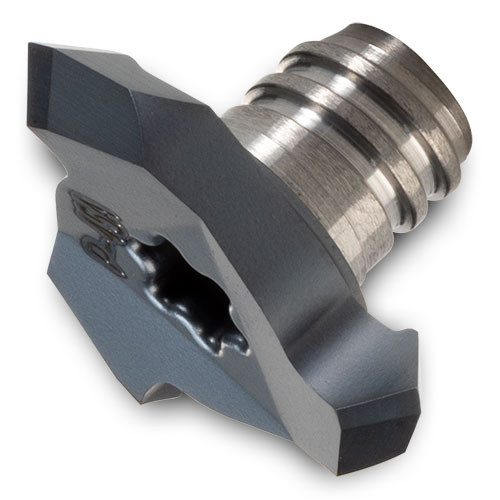

End Mill Head; 0.586″ Dia. × 0.055″ LOC × 0.36″ Shank Dia. ; 3 FL
| Application | | Chamfering | Slanted Shoulder & Chamfer | | Connection Diameter Machine Side (DCONMS) | 0.36″ |
| Cutting Diameter (DC) | 0.586″ | Functional Length (LF) | 0.142″ |
| Flute Count (NOF) | 3 | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Corner Radius (RE) | 0.004″ | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 0.697″ | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.055″ |
Product Features
| Family Description | For soft and gummy materials | Country of Origin | Israel |
