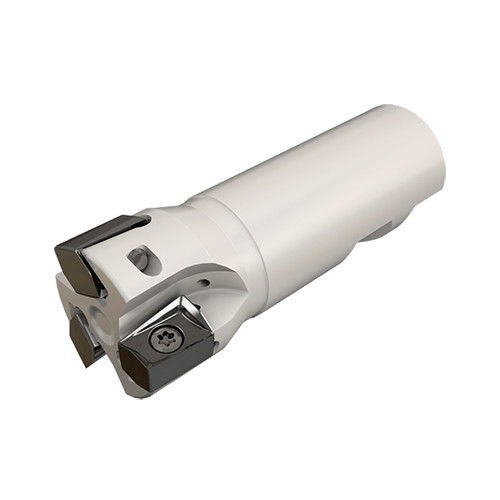

H490 E90AXD1.25-2W1.25-17
Indexable End Mill; 1-1/4″ Dia. × 0.63″ LOC × 1-1/4″ Shank Dia. × 4″ OAL ; 2 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 1.2″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 2.859″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.63″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 6.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Facing | Rampdown | Shouldering | Side Plunging | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | H490 ANKX 170604PNTR | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.14 Lbs |
Product Features
| Family Description | HELIDO 90° endmills carrying the H490 ANKX 17...double-sided rectangular inserts with 4 helical cutting edges. May be used for heavy applications. (HELIDO 490 Line). | Country of Origin | Israel |

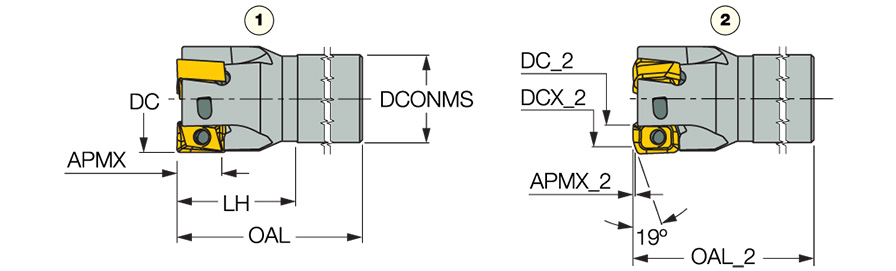

| Remarks | Rampdown angle is valid only when the H490 ANKX 1706R15T-FF insert is used and tool diameter is .06 larger. For adaptation, click on More Info 1- with standard square insert 2- with FF (fast feed) insert |
Shipping Info
Package Weight
1.377
