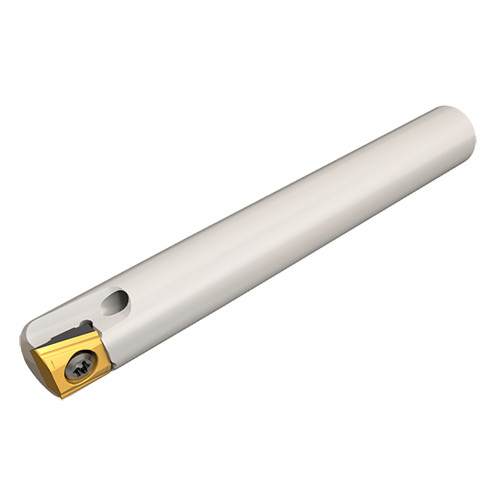

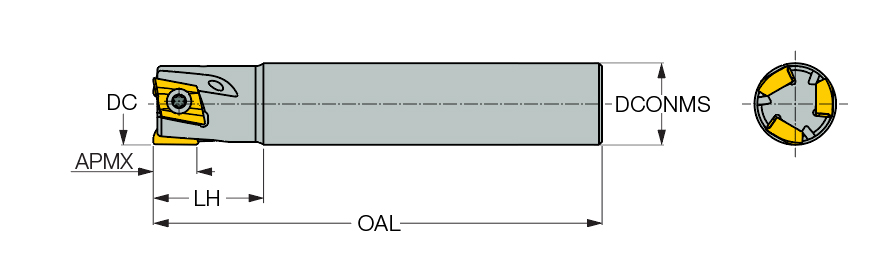

T290 ELN D.50-02-C.50-05
Indexable End Mill; 1/2″ Dia. × 0.197″ Max Depth × 1/2″ Shank Dia. × 3-1/4″ OAL ; 2 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1/2″ | Head Length (LH) | 0.79″ |
| Cutting Diameter (DC) | 1/2″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.197″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 3-1/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Facing | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Body Material | Steel |
| Master Insert Identification (MIID) | T290 LNHT 050202TR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.15 Lbs |
Product Features
| Family Description | Endmills carrying tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | For cutting recommendations and adaptation, click on "More Info" |
Shipping Info
Package Weight
0.278
