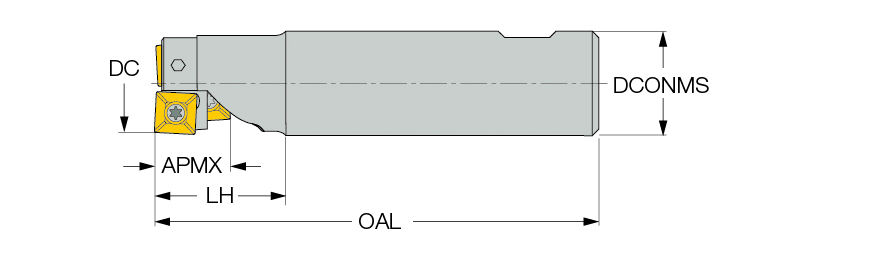

E90XC D.75-.88W75-06
| Cutting Diameter (DC/DCX) | 3/4″ | Head Length (LH) | 1.46″ |
| Cutting Diameter (DC) | 3/4″ | Functional Length (LF) | 2.734″ |
| Cutting Item Count (CICT) | 5 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.87″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 3-3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Drill Mill | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | SOMT 060204-HQ | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.36 Lbs |
Product Features
| Family Description | Drilling endmills carrying square S/XOMT inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on "More Info" Use the XOMT 06.... insert in central face location |
