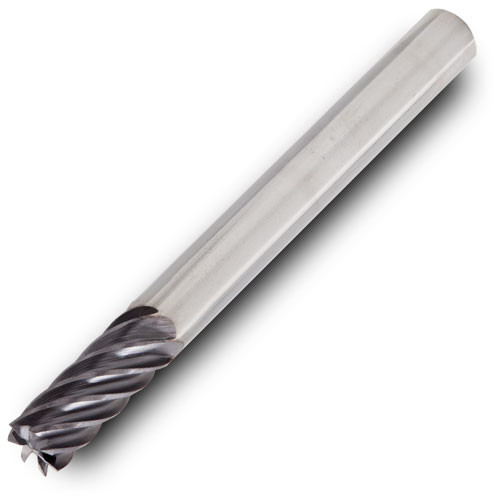

48C00360T7RQ570 IN2003
| Cutting Diameter (DC) | 3 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 6 mm | Application | | Helical Interpolation | Rampdown | Shouldering | |
| Overall Length (OAL) | 57 mm | Corner Chamfer Width (CHW) | 0.1 mm |
| Cutting Edge Material | Carbide | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Coating | TiAlN | Grade | IN2003 |
| Flute Count (NOF) | 7 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 37 Degrees | Measurement Type | Metric |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.053
