47D-3147R7RQ01 IN05S

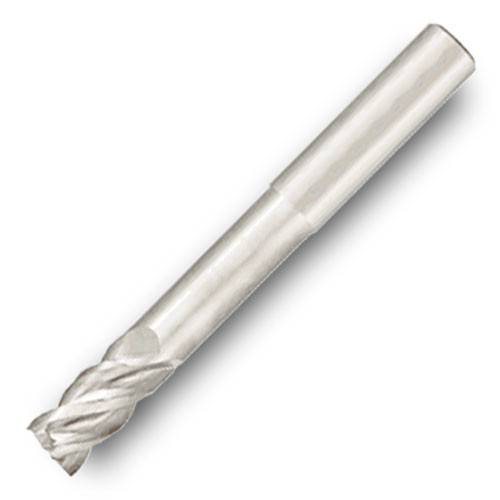

SQ End Mill; 0.313″ Dia. × 0.47″ LOC × 0.313″ Shank Dia. × 2-1/2″ OAL ; 0.01″ RE ; 4 FL ; Carbide
| Cutting Diameter (DC) | 0.313″ | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 0.313″ | Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 0.47″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 2-1/2″ | Grade | IN05S |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.313″ |
| Flute Helix Angle (FHA) | 39-41 Degrees | Measurement Type | Inch |
| End Shape | Corner Radius | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Usable Length (LU) | 1.6″ |
Product Features
| Family Description | 4 Flute with 3, 4, and 5ªD neck relief for machining aluminum Combination variable 39-41° helix and variable pitch Excellent chatter dampening Used for both roughing and finishing | Country of Origin | Israel |
Shipping Info
Package Weight
0.101
