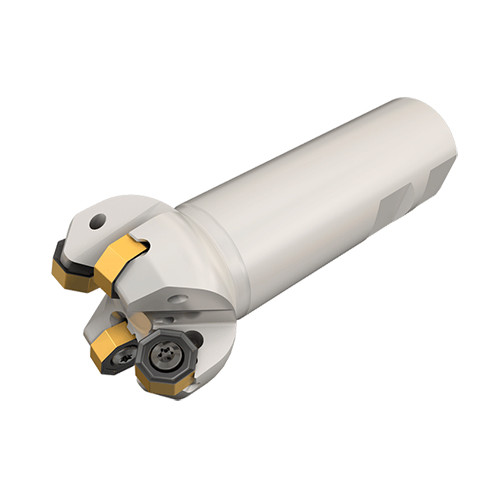

SOE45 8/16-D1.5-04-W1.25R
Indexable End Mill; 1-1/2″ Dia. × 0.114″ LOC × 1-1/4″ Shank Dia. × 4.551″ OAL ; Weldon Shank ; 45 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 4.547″ |
| Cutting Diameter (DC) | 1.407″ | Functional Length (LF) | 3.359″ |
| Cutting Item Count (CICT) | 4 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.138″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 4-1/2″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Shank Type | Weldon | Diameter | 1.317″ |
| Ramping Angle Maximum (RMPX) | 3.7 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Profiling | Rampdown | Slanted Shoulder & Chamfer | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | ONHU 050505-TN | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.54 Lbs | Cutting Diameter Maximum (DCX) | 1.909″ |
Product Features
| Family Description | Multifunctional endmills for octagonal, square and round insert contours with several entry angles. | Country of Origin | Israel |

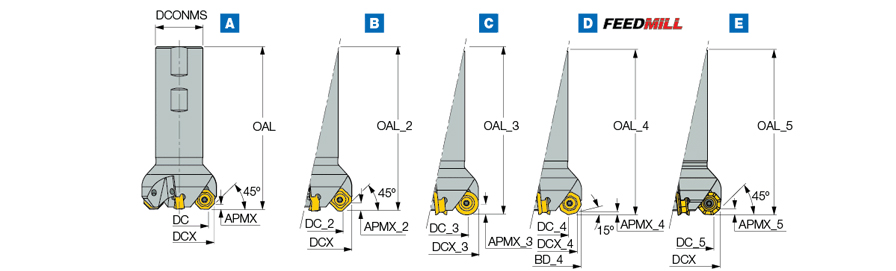

| Remarks | A- with ONMU 0505... insert B- with S845 SNMU 1305... insert C- with RXMT 1607N insert D- with OXMT 0507R08-FF insert E- with OXMT 050705-R-HP insert Use only Torx Plus keys |
Shipping Info
Package Weight
1.819
