46D01226T2RQ20 IN05S

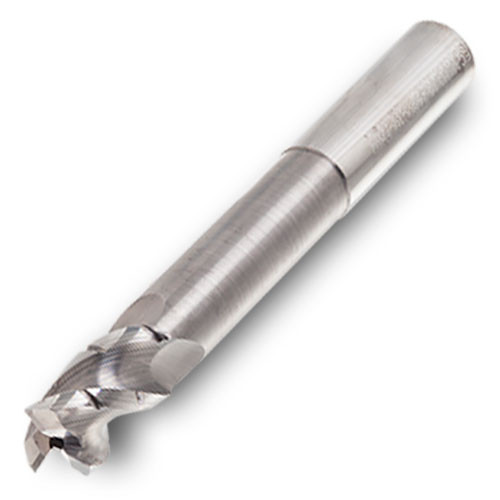

SQ End Mill; 0.472″ Dia. × 1.024″ LOC × 0.472″ Shank Dia. × 3.661″ OAL ; 0.008″ RE ; 3 FL ; Carbide
| Cutting Diameter (DC) | 0.472″ | Usable Length (LU) | 1.89″ |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 1.024″ | Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 3.661″ | Corner Radius (RE) | 0.008″ |
| Cutting Edge Material | Carbide | Grade | IN05S |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 39-41 Degrees | Decimal Equivalent | 0.472″ |
| End Shape | Corner Radius | Measurement Type | Inch |
Product Features
| Family Description | Variable pitch, variable helix Aluminum applications Central coolant Chip Splitters | Country of Origin | Israel |
Shipping Info
Package Weight
0.282
