46D00612T7RQ057 IN05S

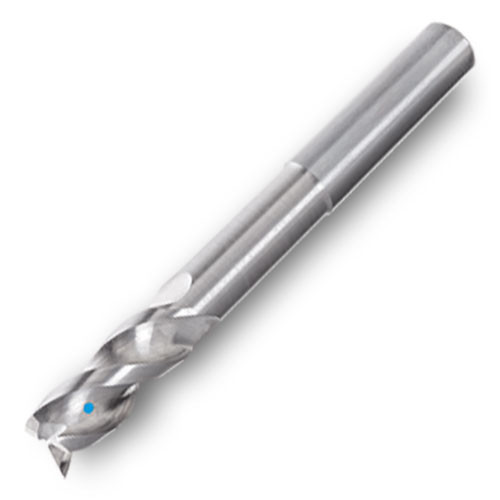

SQ End Mill; 6 mm Dia. × 12 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 0.2 mm RE ; 3 FL ; Carbide
| Cutting Diameter (DC) | 6 mm | Usable Length (LU) | 18 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 12 mm | Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | 0.2 mm |
| Cutting Edge Material | Carbide | Grade | IN05S |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 39-41 Degrees | Measurement Type | Metric |
| End Shape | Corner Radius |
Product Features
| Family Description | Variable pitch, variable helix Aluminum applications Side coolant holes Center Cutting | Country of Origin | Israel |
Shipping Info
Package Weight
0.049
