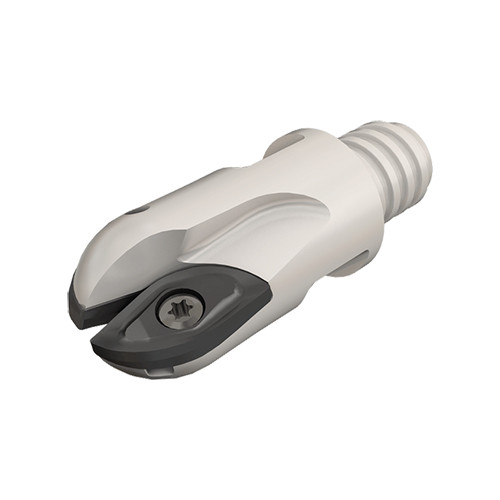

BCM D.75-MMT12
Indexable End Mill; 3/4″ Dia. × 0.61″ LOC × 0.72″ Shank Dia. × 1.902″ OAL ; 90 Degrees

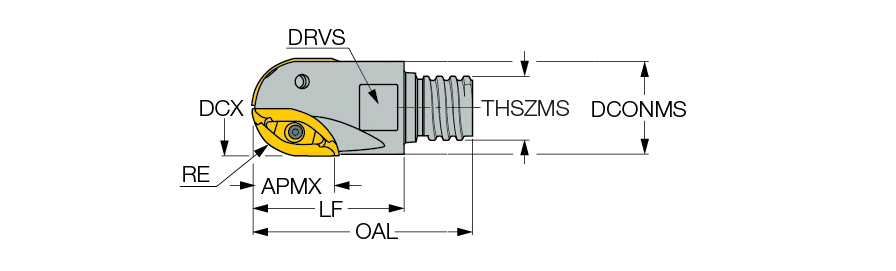

| Cutting Diameter (DC/DCX) | 3/4″ | Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Cutting Diameter (DC) | 3/4″ | Drive Size (DRVS) | 0.56″ |
| Cutting Item Count (CICT) | 2 | Corner Radius (RE) | 0.37″ |
| Depth of Cut Maximum (APMX) | 0.61″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 1.902″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.72″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | BCR D.75-QT | Body Material | Steel |
| Weight of Item (WT) | 0.13 Lbs | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 1.38″ | Cutting Diameter Maximum (DCX) | 3/4″ |
| Tool Type | Ball nose endmills |
Product Features
| Family Description | DROPMILL, Ball nose endmills with MULTI-MASTER threaded adaptation that mount tangent straight edge inserts. Used for semi finishing and finishing at high feed rates. Its unique design provides a fully effective cutter - two cutting edges. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation options, click on More Info |
